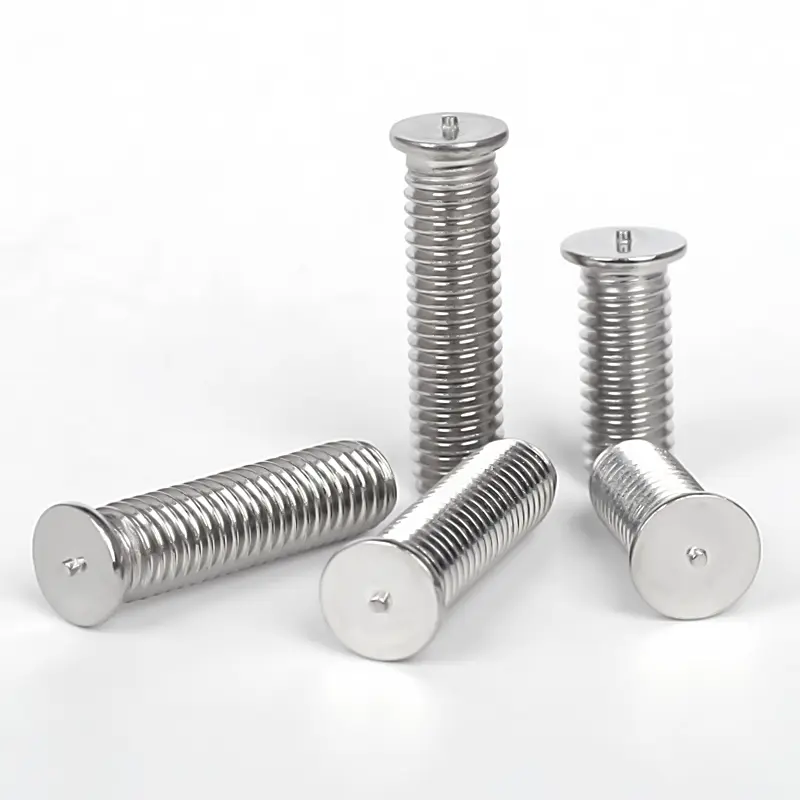

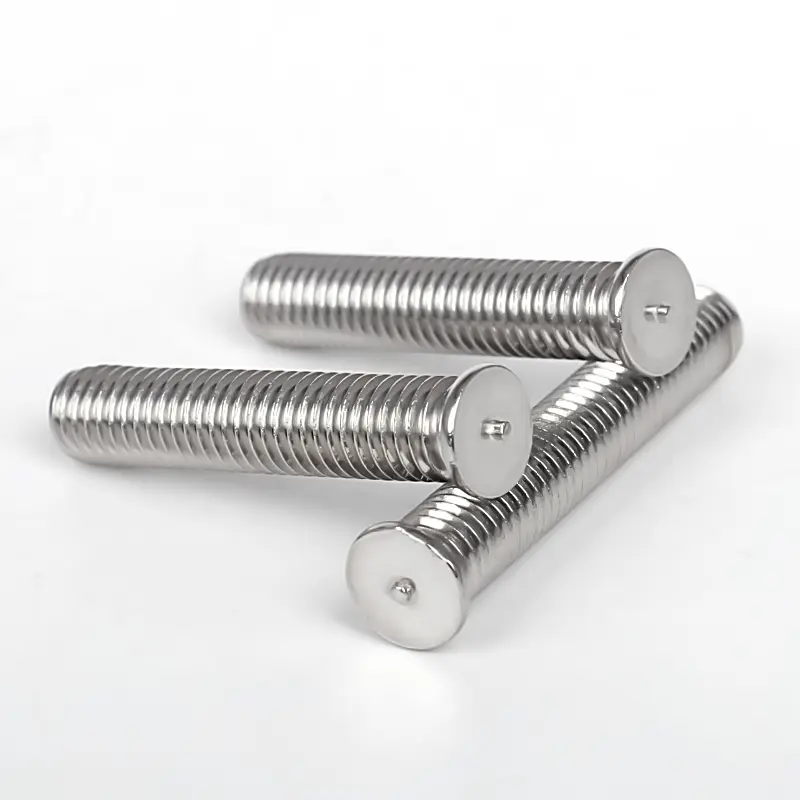

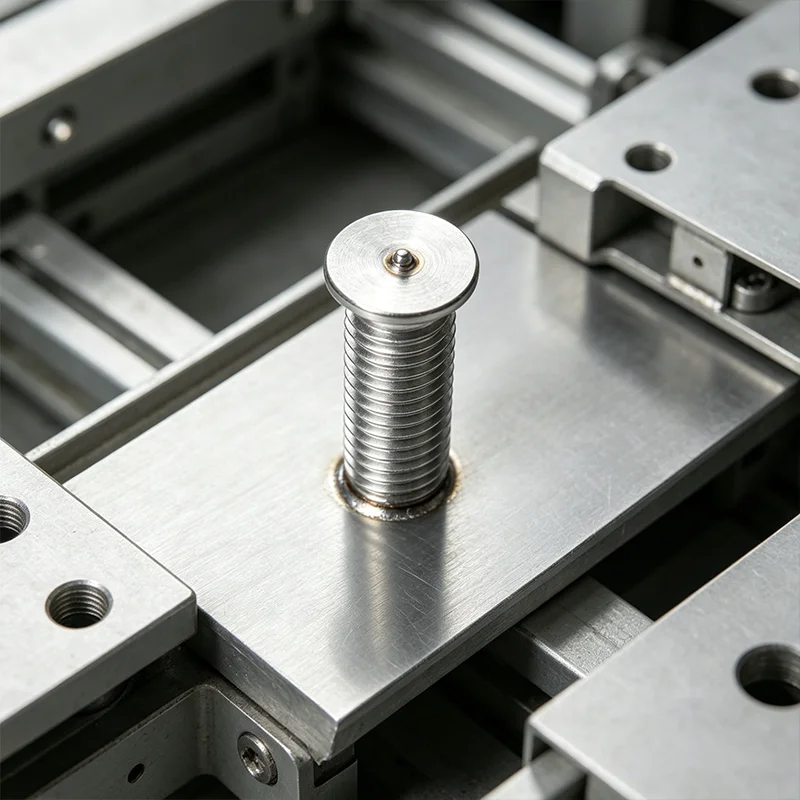

Weld Stud Bolt for Automotive Sheet Metal

The precision welding bumps under the head ensure uniform current conduction and rapid fusion forming during spot welding, forming a permanent integrated connection with the metal substrate. Featuring firm welding strength, no plate deformation, high assembly efficiency and strong vibration resistance, it solves the problems of cumbersome drilling, loose riveting and easy loosening of traditional fasteners. It is widely used in automotive sheet metal, electrical cabinet shell, mechanical equipment casing and thin metal structure manufacturing fields.

Precision Cold Heading Forming & Welding Optimization Process

This Weld Stud Bolt for Automotive Sheet Metal is manufactured via fully automatic precision cold heading and integral forming technology, with compact metal structure and stable mechanical properties. The bottom welding projections are precisely positioned with consistent height and symmetry, ensuring even contact with the plate surface and stable welding current transmission, effectively avoiding virtual welding, missing welding and solder joint deviation. The standard full thread is processed by high-precision thread rolling, with full tooth shape and smooth meshing, supporting quick locking and matching of standard nuts. The bolt body adopts high-quality low-carbon steel or stainless steel material, which is easy to weld and form, with high solder joint toughness and strong shear tensile force after welding. Surface treatments such as copper plating, electro galvanizing and passivation are optional, which improves welding conductivity and subsequent anti-corrosion performance, meeting the long-term service requirements of industrial and automotive assembly.

Product Parameter

Projection Welding Advantages & Industrial Assembly Value

1. No drilling & one-side rapid installation. Different from traditional through-hole bolts, spot welding studs do not require pre-drilling on the plate surface. One-side spot welding operation is adopted to complete fixed forming in one step, which greatly simplifies the production process and avoids plate damage and hole position deviation caused by drilling.

2. Permanent integrated welding & super anti-loosening performance. After projection spot welding, the bolt and the metal sheet form an integrated fusion structure without gap displacement. It can resist long-term equipment vibration, vehicle driving jitter and external impact load, completely solving the loosening problem of traditional threaded connection.

3. Uniform solder joint & no structural deformation. The precision symmetrical welding projections ensure concentrated and uniform welding current, stable solder joint forming, flat and smooth plate surface without bulging or depressions. It effectively protects the integrity of thin metal plates and meets high-precision appearance and assembly standards.

4. High efficiency & suitable for batch production. Compatible with automatic welding equipment, the welding and fixing process is fast and stable, suitable for large-scale assembly line operations in automobile manufacturing and electrical industry. It significantly improves production efficiency and reduces manual assembly costs.

5. Strong environmental & structural adaptability. With optional copper plating and anti-corrosion treatments, the bolt has good welding conductivity and excellent rust resistance. Weld Stud Bolt for Automotive Sheet Metal is suitable for various thin metal structure assembly scenarios, and is a standard dedicated fastener for closed and narrow installation spaces.

FAQ

Q1: What is the difference between spot welding bolts and ordinary bolts?

A1: Ordinary bolts rely on drilling and nut locking for fixing, while spot welding bolts adopt projection welding forming, no drilling required, one-side installation, integrated permanent connection, stronger anti-vibration performance and more suitable for thin plate and batch automated assembly.

Q2: Will spot welding bolts fall off after long-term use?

A2: No. The bolt and the metal substrate form metal fusion integration through professional resistance spot welding. The solder joint has high toughness and shear resistance, no loosening or falling off under long-term vibration load, achieving permanent fixing effect.

Q3: What materials are suitable for welding?

A3: It is widely applicable to low-carbon steel plates, aluminum plates, stainless steel sheets and other metal thin-plate profiles, and is the preferred fastener for automotive and electrical sheet metal structural assembly.

Q4: Why do spot welding bolts need copper plating?

A4: Copper plating can effectively improve welding conductivity, make the solder joint more uniform and firm, avoid virtual welding and missing welding, and optimize the overall welding forming effect, which is a mainstream process for high-precision welding bolts.

Q5: Support non-standard customized specifications?

A5: Yes. We support customized welding point structure, bolt length, thread size and surface process, and can provide exclusive customized solutions according to customer assembly equipment and product structural requirements.
