Name Plate Rivet

Product Parameter

Knurled-Shank Structural Advantages

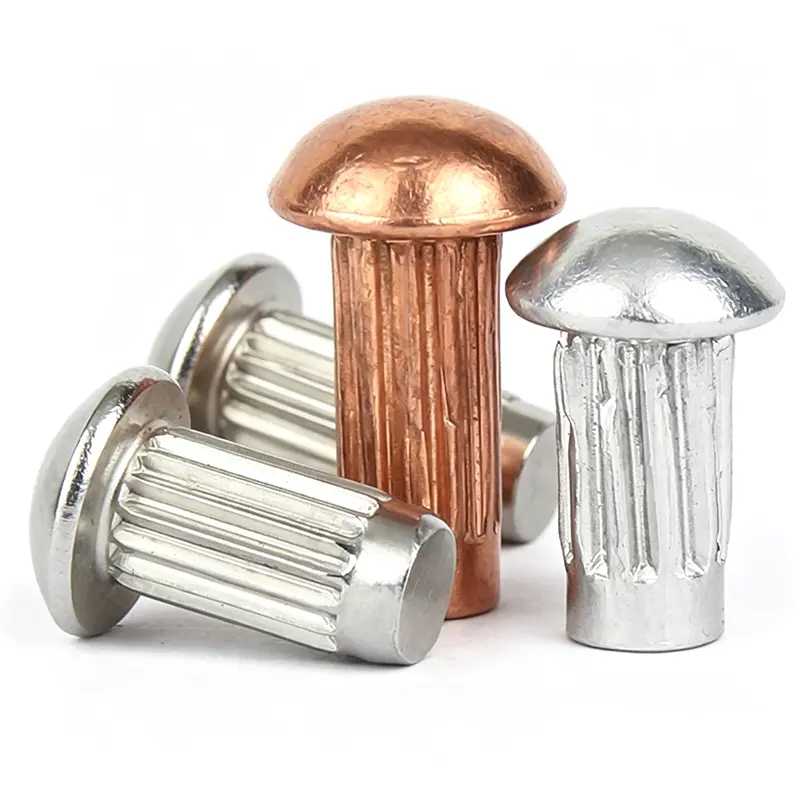

The core feature of GB/T827 name-plate rivet is knurled straight-knurl shank. When inserted into mounting hole, the knurled profile produces interference fit with hole wall, which restrains rivet rotation during hammer-riveting. It avoids the common problem of name-plate twisting and offset. Round dome-head provides large bearing surface, protects nameplate surface from damage. As solid-body rivet, it forms double-head locking after upsetting, delivering stable permanent connection for thin-plate name-label assembly scenarios.

Material Options & Application Environment

Aluminum name-plate rivets are widely adopted, lightweight and easy-for-riveting, suitable for general indoor & outdoor equipment. Copper / brass rivets own nice metallic luster, preferred for decorative-type name-badges. 304 stainless steel version performs well under moist and outdoor environment; 316 stainless steel fits coastal salt-spray conditions. Zinc-plated carbon-steel rivets are cost-effective for indoor general-purpose assembly. You can select proper material based on corrosion-resistance requirement and appearance demand.

Manufacturing & Quality Control

Name-plate rivets are cold-forged from high-quality raw-material bars. Knurl rolling, head forming and shank machining guarantee precise dimension tolerance. Surface without burrs, cracks or scratch defects. Each batch implements sampling inspection including dimension check, appearance inspection and riveting performance test. Stable batch consistency supports bulk export and engineering-project procurement.

Installation Guidance & Notes

Name-plate rivet needs access to both-sides of workpiece. Pre-drilled hole diameter shall match rivet nominal diameter. Insert knurled shank through nameplate and substrate holes, support round-head side, then hammer or press the tail end to upset and form clinch head. Avoid excessive striking to prevent name-plate deformation. It is permanent non-removable fastener. For mass-production projects, perform sample riveting test first to verify hole-fit and appearance effect.

Bulk Supply & Customization

Standard-size GB/T827 name-plate rivets are in stock for fast delivery. Non-standard lengths can be customized. Material inspection reports can be provided for foreign-trade orders. Export-grade moisture-proof carton packing and OEM marking are supported. Stable mass-supply capacity for hardware factories, equipment-manufacturers and global purchasers.
