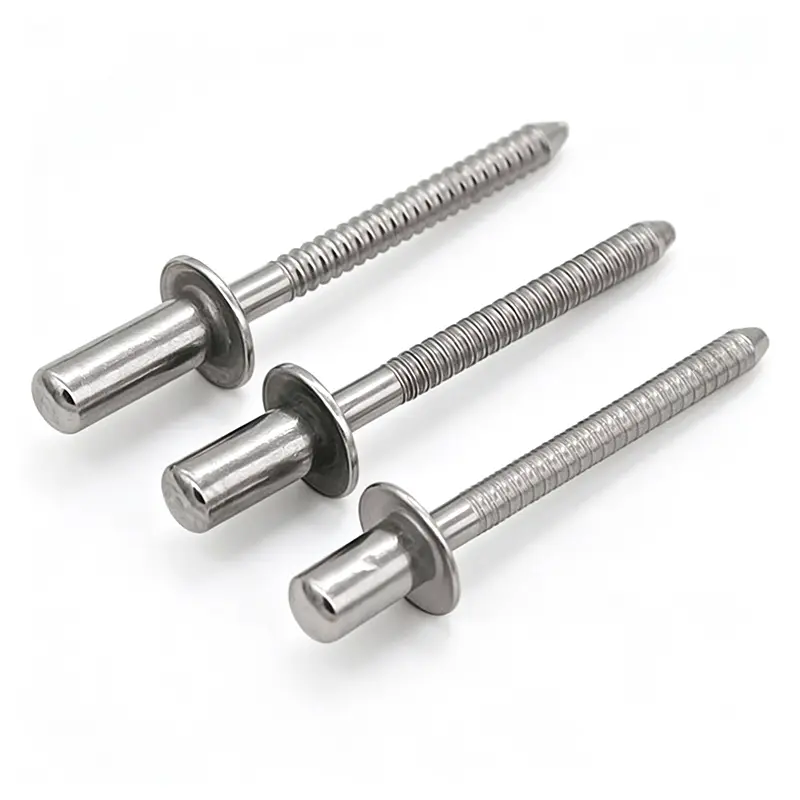

Closed-End Blind Rivet

Product Parameter

Closed-Tail Sealing Structural Advantages

The core advantage of closed-end blind rivets lies in cup-shaped closed tail design, which fundamentally distinguishes it from open-end blind rivets with through-hole structure. After riveting, the mandrel head is fully locked inside the closed rivet sleeve, forming an integrated sealed barrier at the blind-side end. This structure blocks penetration channels for water vapor, rainwater, dust and corrosive media, achieving reliable waterproof and air-tight sealing performance. It avoids hidden danger that debris of broken mandrel falls into inner cavity of equipment, which is critical for electronic and electrical equipment. Under vibration and alternating load conditions, the closed-end structure improves overall connection stability, delivers higher tensile-shear bearing capacity than open-end rivets of same specification, and greatly reduces leakage-caused corrosion risk of joint positions.

Multi-Material Matching & Environment Adaptability

We supply multiple mature material combinations for closed-end blind rivets to match different working-condition requirements. Aluminum-steel combination features light-weight and cost-effective for general outdoor sheet-metal; all-aluminum type avoids galvanic corrosion when connecting aluminum work-pieces. All-steel zinc-plated versions provide higher mechanical strength for heavy-load assemblies. Stainless-steel A2 series suit coastal salt-spray, humid and corrosive environments for long-term anti-rust performance. All raw materials comply with fastener mechanical-property standards. Different material combinations can be selected according to load requirement, ambient humidity and corrosion level, to balance connection strength, sealing performance and project cost.

Precision Manufacturing & Strict Quality Inspection

Each closed-end blind rivet is processed by precision cold-extrusion forming for rivet sleeve, guaranteeing integrity of closed-cup tail without tiny crack or leakage risk. Rivet body and mandrel cooperate precisely, with stable mandrel breaking force. Key dimensions including diameter, grip length and head dimension are strictly controlled within tolerance range. Every production batch undergoes sampling inspection including tensile-shear destructive test, sealing performance test, mandrel-head retention test and appearance inspection. Defective products with crack, burr or dimension deviation are eliminated. Stable batch consistency supports mass export and engineering-project procurement.

Installation Guidance & Working-Condition Matching Notes

Closed-end blind rivets belong to single-side-operation sealed fasteners. Users shall select proper diameter and grip range according to actual sheet-metal total thickness; improper grip range will cause insufficient clamping force or sealing failure. Drill hole size shall match rivet outer diameter; oversized hole affects sealing effect. Operate with standard rivet gun, keep rivet vertical during pulling-rivet process. This product is specially suitable for fastening scenarios requiring waterproof, dust-proof and mandrel-fragment-free requirement. It is not recommended for repeated-disassembly applications. For critical sealing-demanding projects, sampling sealing test is suggested before mass installation. Regular visual inspection for joint condition is recommended for long-term service.

Customized Solutions & Large-Volume Supply Capacity

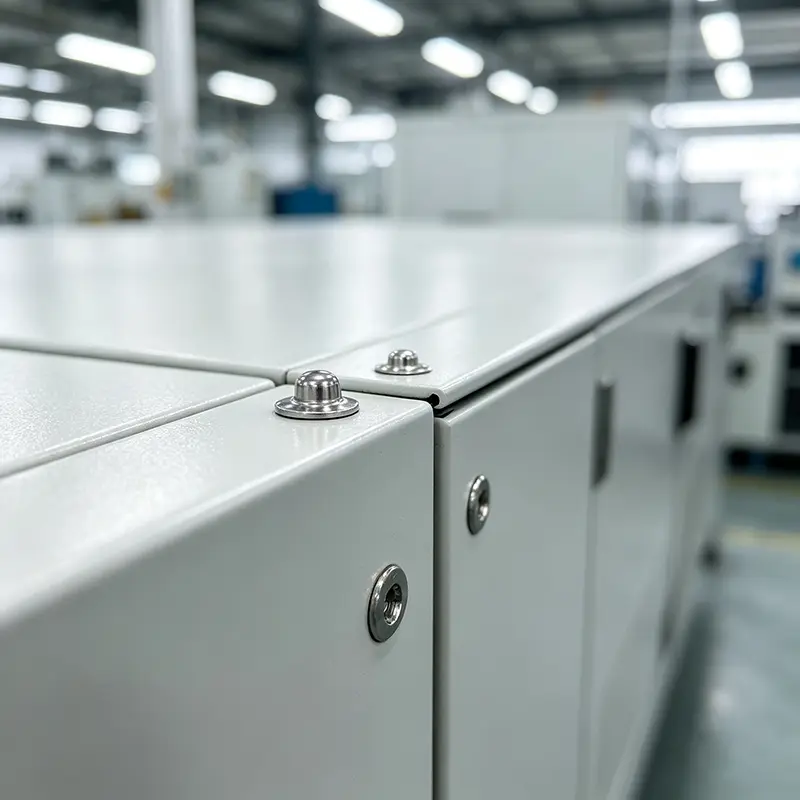

We provide customized service for closed-end blind rivets for differentiated industrial assembly demands. Support customizing effective grip length, special non-standard length, special surface anti-corrosion treatment. Standard specifications keep adequate stock for fast sample delivery and bulk export-order shipment. Material test reports and mechanical-performance inspection documents can be offered for project acceptance and foreign-trade clearance. OEM marking and export-grade moisture-proof packing are available. Stable mass-supply capability for sheet-metal fabrication, new-energy equipment, automotive accessories, HVAC and electrical-cabinet supporting industries.
