Male-Female Rivet

Male-Female Rivet, also known as double-cap rivet, post-and-cap rivet or two-part mating rivet, is a split-type press-fit fastener composed of male post and female cap. Different from conventional single-body solid rivets, both sides of assembled joint feature finished uniform heads, delivering neat appearance on both visible surfaces. Installation is completed simply by hammer or press tool, no complex rivet gun required. After pressing, the female cap deforms and locks tightly onto male post to realize permanent clamping connection. Widely adopted for leather goods, luggage, footwear, knife handles, nameplates, craft decorations and thin-plate assembly. Multiple head styles, material options and surface finishes are available for decorative and light-medium load fastening requirements.

Send Inquiry

Product Description

Product Parameter

Parameter Item	Detailed Specification
Product Name	Male-Female Rivet, Double-Cap Rivet, Post-and-Cap Rivet, Two-Piece Mating Rivet
Executive Standard	DIN 7331
Available Material	Brass / Copper, 304 / 316 Stainless Steel, Carbon-Steel, Aluminum
Size Range	Diameter:2-10mm; Custom grip length according to workpiece thickness
Head Style	Round Dome Head, Flat Head, Countersunk Head
Surface Treatment	Nickel-plated, Zinc-plated, Brass-plated, Antique-finish, Plain Passivation
Core Performance	Two-piece matched assembly, finished double-sided heads for good appearance, simple press-in installation, stable permanent locking, suitable for visible-joint applications
Installation Method	Manual hammer striking, bench press-in tool
Application Scenarios	Leather belts, luggage & bags, footwear accessories, knife handles, equipment nameplates, craft decorations, thin-metal sheet assembly, gift-book binding
Custom Service	Custom diameter & grip length, special head profile, custom plating color, OEM packaging and laser marking

Two-Piece Matched-Locking Structural Advantages

Male-female rivet consists of independent male post and female cap. Unlike ordinary solid rivets which produce deformed rolled-over tail after riveting, both sides keep pre-manufactured neat heads after assembly, achieving consistent visual effect for double-sided exposed joints. During installation, male post passes through pre-drilled holes of workpieces, female cap covers the protruding post end. External pressing force makes female cap mouth deform and clamp tightly on post outer diameter to complete permanent fastening. No rough deformed tail left. It optimizes both connection performance and surface aesthetics, widely preferred for products requiring good visual quality on both sides.

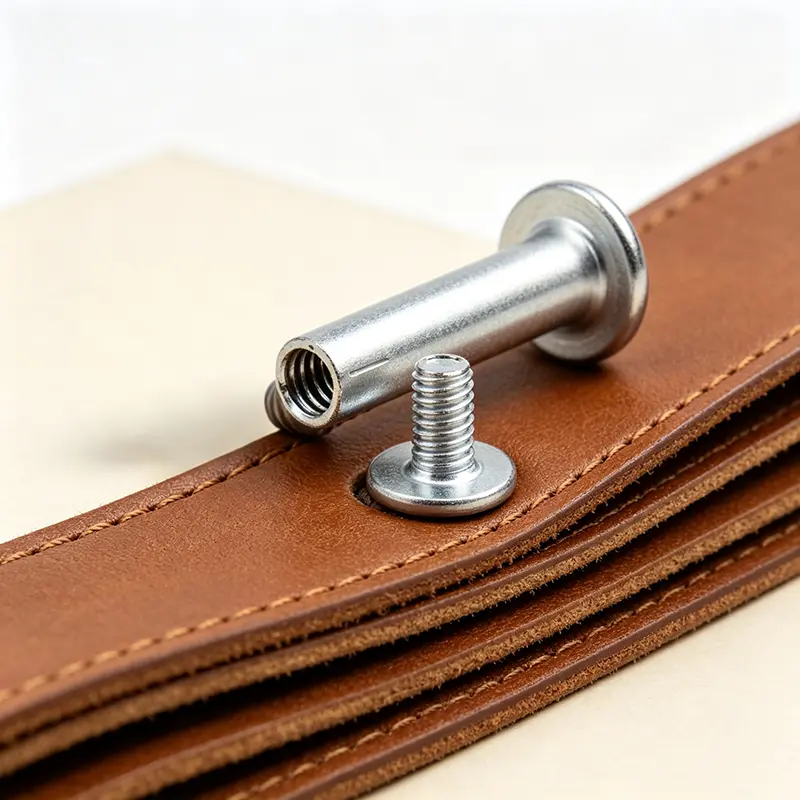

Male Female Rivet

Material Options & Application Environment

Brass / copper male-female rivets own excellent metallic texture and diverse plating options, mainly used for leather goods, handicraft and decorative assembly. 304 /316 stainless steel versions deliver reliable rust-resistance for outdoor, moist and coastal-environment applications. Carbon-steel with electroplated surface provides cost-effective solution for indoor general-purpose assembly. Aluminum material features light weight for low-load lightweight assemblies. Please select proper material according to load requirement, corrosion-resistance and appearance demand.

Manufacturing & Quality Control

All male-female rivets are cold-forged from premium raw-material bars. Male post and female cap are produced with matched tolerance to guarantee proper pressing-fit clearance. Surface is smooth without burrs, scratches or cracks. Each batch implements sampling inspection covering dimension matching, appearance inspection and destructive pressing-lock test, to avoid problems such as loose fit or gap after installation. Stable batch consistency supports bulk export and mass-production procurement.

Installation Guidance & Usage Notes

Drill matching holes through stacked workpieces. Insert male post from one side, put female cap onto protruding post end from opposite side. Apply even pressure via hammer or press tool to make female cap mouth fully crimp and lock onto post. Avoid excessive striking which may crush workpiece or deform rivet head. This is permanent press-fit fastener and cannot be disassembled after full crimping. Not recommended for heavy-load or high-frequency vibration working conditions. Conduct sample pressing test before mass assembly to verify hole-fit and locking effect.

Bulk Supply & Customization

Standard-size male-female rivets are kept in stock for fast delivery. Non-standard dimensions and special-finish versions can be customized. Material test reports are available for foreign-trade orders. Export-grade moisture-proof carton packing and OEM marking are supported. Stable mass-supply capacity for leather-goods factories, hardware handicraft manufacturers and global purchasers.
