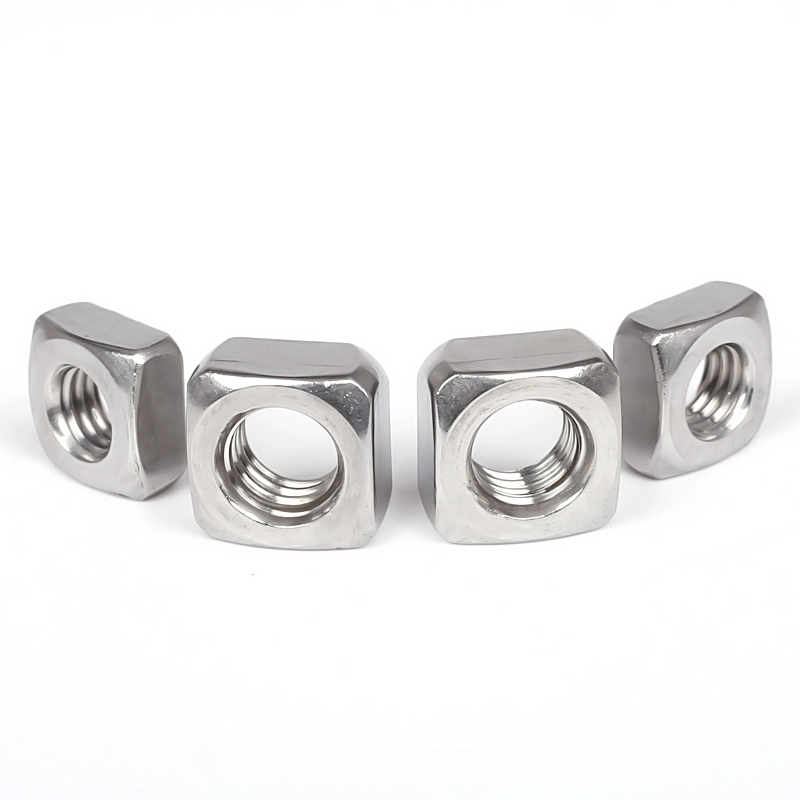

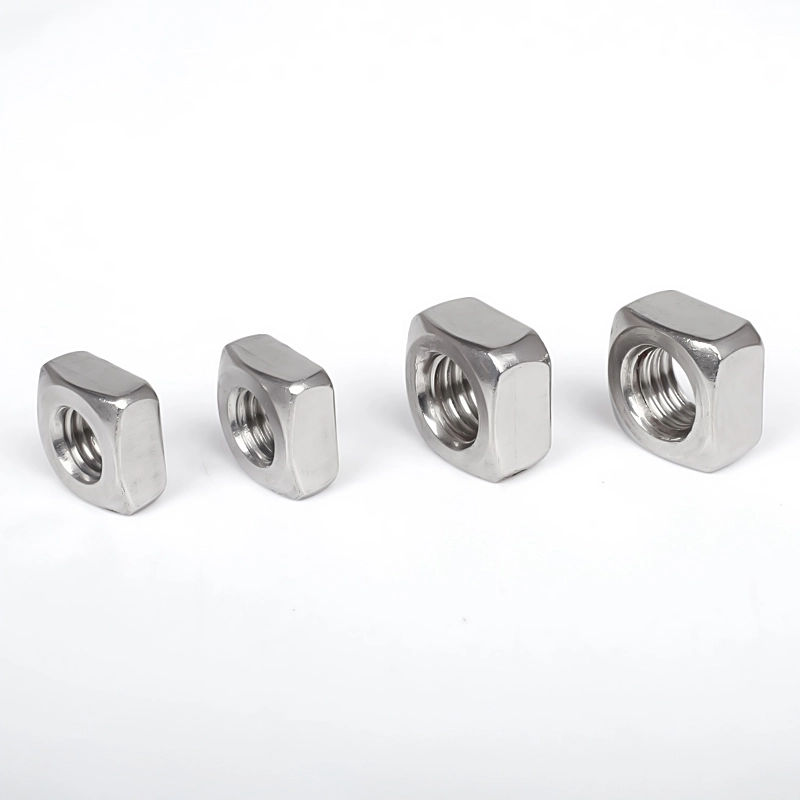

Stainless Steel Square Nut DIN 557

The China Stainless Steel Square Nut DIN 557 supplied by Wanluo manufacturer has been specially upgraded to address the industry pain point of traditional fasteners being prone to self-loosening due to torque and vibration. With a larger pressure-bearing contact area and a stable quadrilateral structure, it is suitable for various working conditions such as tooling fixtures, mechanical frames, and civil engineering fixations that require long-term static locking and precise positioning. It is a more stable specialized fastening component used in industrial fixed assembly.

Features

The Stainless Steel Square Nut DIN 557 is produced through an integrated precision stamping and threading forming process. It has no joint gaps throughout and precise dimensional tolerances that can be controlled. It is made of high-purity stainless steel, ensuring both structural hardness and resistance to compression and corrosion. Compared to conventional hexagonal nuts, the square structure distributes force more evenly, effectively avoiding local stress concentration and deformation of the workpiece. It can be perfectly inserted into square slots and limit holes, and is suitable for various custom workholding molds and equipment limit structures. It is not prone to displacement or loosening over the long term and is suitable for various low-vibration, heavy-load static industrial fixation scenarios.

Actual performance tests

1. Anti-reversal limit stability test

Simulate slight vibrations and static torque conditions for continuous testing. Insert the square nut into the standard square limit slot and lock it. Run continuously for 72 hours under low-frequency vibration. The nut shows no self-rotation, no offset, and no loosening. Compared with ordinary hexagonal nuts, it completely eliminates the problem of rotation and slipping within the slot. The positioning accuracy of the limit remains consistent throughout the process, meeting the requirements for repeated positioning and use with standard fixtures and molds.

2. Pressure stress dispersion test

Our Stainless Steel Square Nut DIN 557 undergoes gradient pressure testing with a professional pressure testing machine. Under the same locking torque, the contact pressure-bearing area of the square nut is larger, and the pressure distribution is uniform without local concentration points. After continuous heavy-load pressure application, the contact surface is flat without scratches, and the workpiece does not undergo plastic deformation. The structural pressure resistance performance is superior to that of conventional nuts of the same specification, effectively protecting the assembly substrate, and suitable for heavy-load static fixation scenarios.

3. Forming accuracy compatibility test

Randomly inspect multiple batches of products for size verification. The verticality of the four sides, the right-angle angle, and the thread accuracy all meet the tolerance range of DIN 557 German standard. There are no size deviations, edge warping, or thread jamming problems. It is compatible with standard bolts and various square limit slots. The assembly fit is high, the insertion and rotation are smooth, and there are no over-tightening or under-tightening compatibility faults.

4. Material weather resistance and corrosion resistance test

Simulate outdoor humid and slight acid-base corrosion environments for salt spray tests. After long-term testing, the surface of the nut shows no rusting or oxidation spots, and the internal thread has no corrosion and jamming. The structural hardness and locking performance do not decline. It can be used for long-term outdoor construction fixation and outdoor mechanical frame assembly. The weather resistance stability is excellent.

5. Long-term static locking durability test

The equipment is statically locked under full load for 30 days and continuously bears a constant load. After disassembly and inspection, it is found that the nut has no deformation, and the thread bite gap has no change. The locking force is stable and does not decline. There will be no relaxation failure after long-term static storage. It meets the durability requirements for long-term fixed use in industrial equipment and infrastructure projects.

Stress Dispersion & Assembly Advantages

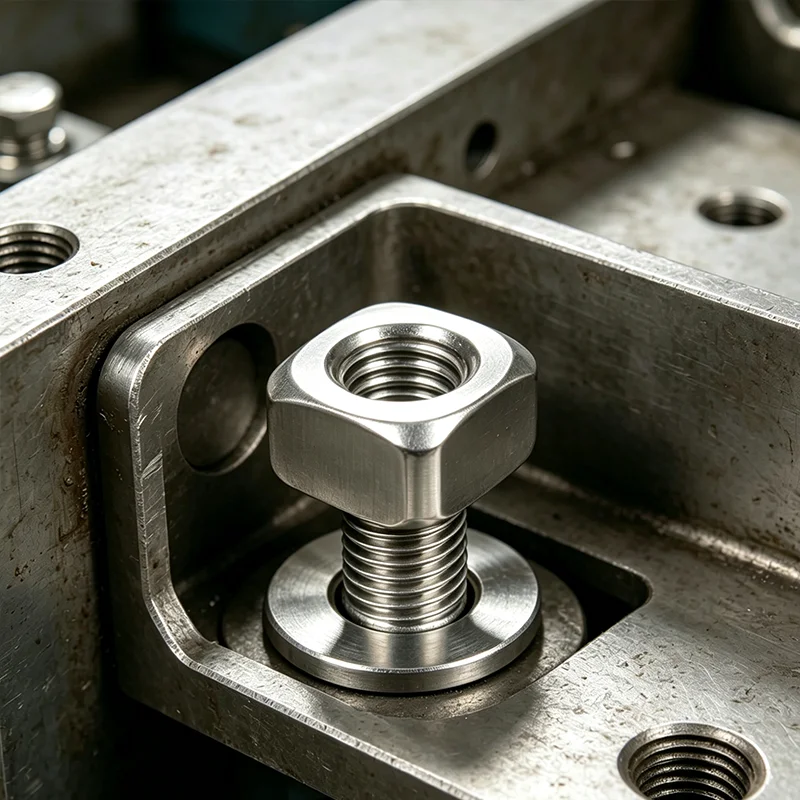

DIN 557 square nuts adopt one-piece precision stamping and thread rolling forming process, with flat and smooth four-side vertical surfaces and no dimensional deviation in right-angle corners. The enlarged bearing surface disperses locking pressure more evenly than standard hex nuts, avoiding local stress concentration and workpiece extrusion deformation. The vertical square body can be perfectly embedded into square grooves and limit positioning holes, achieving passive anti-rotation locking without additional limit accessories. High-purity stainless steel material ensures stable structural hardness, excellent corrosion resistance and extrusion resistance, maintaining long-term fixed locking accuracy in static load and low-vibration industrial environments.

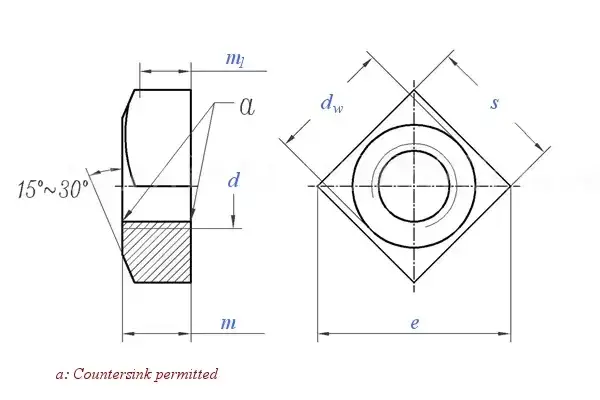

Product Parameter

Core Advantages & Industrial Application

1. Unique square limit structure realizes passive anti-rotation positioning, which can be locked stably in square grooves and limiting holes, effectively avoiding nut rotation and loosening during bolt tightening and equipment operation.

2. Larger flat contact surface compared with ordinary hex nuts reduces unit pressure on the workpiece, protecting thin plates and soft material surfaces from indentation and damage, improving overall assembly flatness.

3. Simple and compact four-sided structure saves assembly space, suitable for narrow installation positions where hexagonal tools cannot rotate, solving the space limitation pain points of special fixture assembly.

4. Stainless Steel Square Nut DIN 557’ s high-quality stainless steel material provides excellent rust and corrosion resistance, adapting to outdoor equipment, humid workshops and chemical environmental fastening scenarios with long-term stable performance.

5. High matching precision standard thread ensures smooth screwing and strong versatility, widely compatible with metric bolts, studs and threaded rods for one-stop supporting assembly.
