Slotted Pan Head Non-Drop Machine Screw

Product Parameter

Partial-Shank Captive Anti-Drop Structural Principle

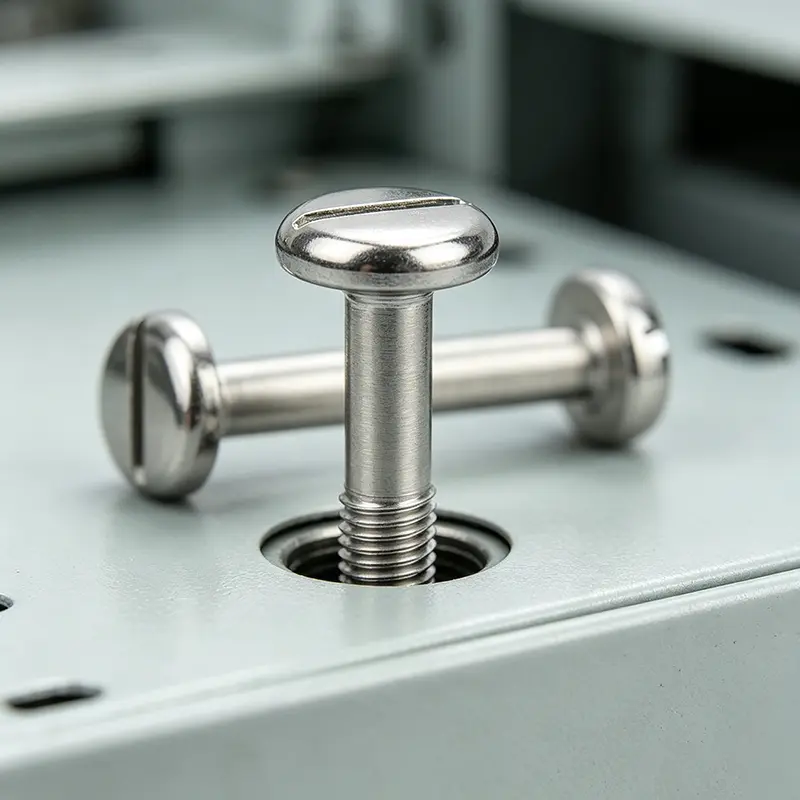

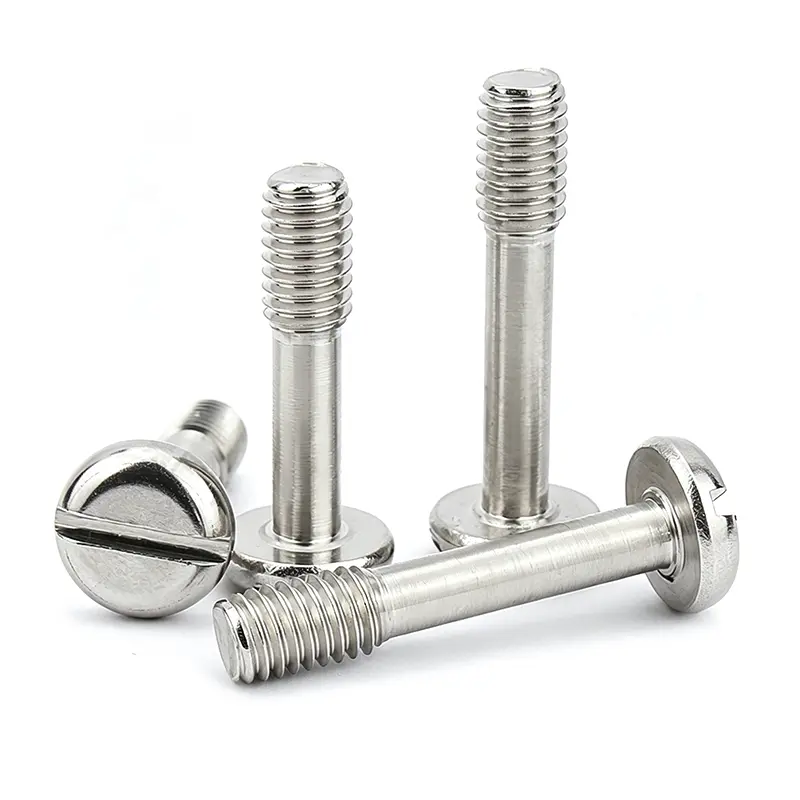

The core value of the slotted pan-head retaining screw comes from its special partial-thread architecture, which solves the practical pain point of small-screw loss during repeated disassembly. The middle section of the screw body retains a smooth non-threaded shank; only the tail segment carries machine threads. When unscrewed, once the thread fully exits the mating nut, the smooth shank slides inside the component hole, while the pan-head limits outward travel so the screw cannot separate and fall away from the assembly. Operators can open covers and panels without worrying about misplaced or lost small fasteners. The wide pan-head offers ample contact area to distribute compression stress and avoid surface denting. The straight-slot drive supports simple flat-blade screwdriver operation without requiring special tooling, ideal for frequently-serviced housings and covers.

Stainless Steel Material Performance For Repeated-Cycle Service

These non-drop machine screws adopt 304 / 316 stainless steel selected for frequent-disassembly scenarios. The material balances surface hardness and ductility, resisting slot-head wear after many screwdriver cycles. Good corrosion-resistance handles cabinet-equipment working environments including indoor humidity, outdoor damp air and light salt-spray conditions. Passivation treatment stabilizes surface anti-oxidation performance, preventing thread seizing and rust-swelling. Both the threaded zone and smooth shank maintain stable dimensional consistency batch-to-batch, ensuring the shank slides freely inside mounting holes without jamming, while thread engagement stays reliable under repeated tightening-loosening cycles.

Precision Machining Of Partial-Thread Retaining Screw

Production strictly controls two key dimensions: effective thread-segment length and smooth-shank diameter. Bar stock is turned-to-shape for pan-head forming, slot milling, shank-diameter finishing and thread rolling. The thread-rolling process generates complete, smooth thread profiles for reliable mating. The transition boundary between smooth shank and thread is precisely positioned according to customer requirements, directly determining the maximum loosening travel of the captive screw. Every finished piece undergoes go-no-go thread gauge inspection, shank-diameter verification and slot-geometry check. Dimensional consistency guarantees that screws slide smoothly in mating holes without sticking, while retaining the anti-drop limiting effect.

Captive-Structure Assembly & Practical-Use Remarks

Slotted pan-head retaining screws are purpose-built for assemblies where the screw should remain attached to one component after loosening. The mounting hole on the cover-panel must be sized to freely pass the smooth shank while stopping against the pan-head. Do not over-torque during installation; excessive force risks slot-head damage or panel-surface deformation. This fastener is designed for repeated opening-closing operations; it is not intended for high-vibration heavy-load connections. When designing your assembly, confirm required free-travel distance to match the length-ratio between smooth shank and threaded section. Avoid applying external pulling force to the loosened screw, which may damage the head-to-shank transition.

Special-Dimension Customization & Order-Volume Supply Support

Since retaining-screw performance heavily depends on shank-to-thread length ratios, we offer targeted custom development for project-specific requirements. We can adjust smooth-shank length, thread-segment length, overall screw length and head dimensions to satisfy different panel-thickness and captive-travel needs. Standard sizes are stocked for quick sample dispatch and small-batch orders. Large-volume project orders are supported with stable batch-production capacity. Dimensional inspection reports can be provided for incoming-quality verification. OEM laser marking and export-suitable packaging are available for equipment-manufacturer clients.
