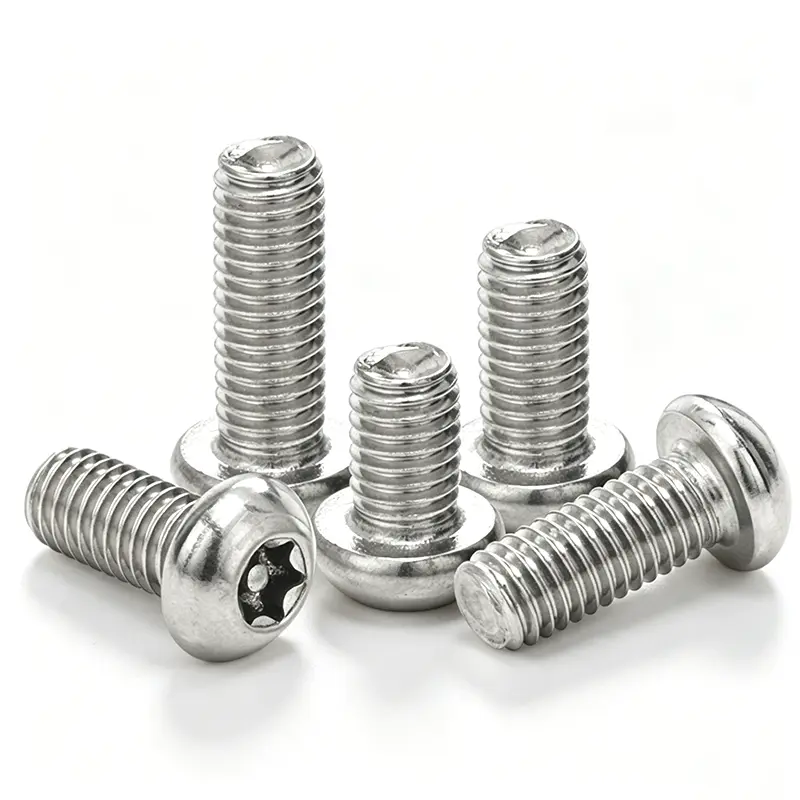

Pan Head Torx Pin Security Machine Screw

Pan Head Torx Pin Security Machine Screws are professional tamper-proof fastening fasteners designed for public facilities, security equipment and anti-disassembly installation scenarios. Different from ordinary standard torx screws, this product adopts a built-in central pin anti-theft structure inside the six-lobe torx groove, which cannot be disassembled by common screwdriver tools, effectively preventing unauthorized disassembly, theft and man-made damage. The rounded pan head design provides smooth and neat assembly surface without sharp protrusions, suitable for surface mounting requirements of precision equipment. With standard metric machine threads, precise meshing tolerance and stable locking performance, it integrates safety, aesthetics and durability. It is widely used in public infrastructure, electronic equipment, security monitoring facilities, transportation equipment and private anti-disassembly engineering projects.

Send Inquiry

Product Description

Product Parameter

Parameter Item	Detailed Specification
Product Name	Pan Head Torx Pin Security Machine Screw, Tamper Resistant Torx Screw, Anti-Theft Machine Fastener, Central Pin Torx Screw, Non-Removable Security Screw
Executive Standard	ISO standard metric machine screw, DIN tamper-resistant fastener specification, GB general fastener standard
Available Material	High-strength Carbon Steel, 304 Stainless Steel, 316 Stainless Steel
Metric Thread Size	M2, M2.5, M3, M4, M5, M6, M8 full standard metric machine threads
Length Range	4mm–100mm, customizable non-standard length
Structural Feature	Round pan head, internal torx groove with central anti-removal pin, full machine thread, tamper-proof integrated structure
Surface Treatment	Blue white zinc plating, yellow zinc passivation, black oxide, natural stainless steel polishing
Core Performance	Anti-theft & tamper-resistant, high torque resistance, no tool slipping, stable locking, corrosion resistant, reusable disassembly with special tools
Matching Tool	Special hollow torx security bit, tamper-proof star screwdriver
Application Scenarios	Public facilities, monitoring equipment, traffic facilities, electronic cabinets, ATM equipment, outdoor security devices, anti-theft assembly projects
Custom Service	Custom pin height, torx groove specification, special thread length, non-standard head size, laser marking and customized anti-corrosion treatment

Material & Raw-Material Inspection

All raw materials used for security torx pin screws undergo strict incoming quality inspection to meet industrial anti-theft fastener standards. Carbon steel materials adopt high-rigidity low-carbon steel with balanced hardness and toughness, ensuring the central anti-theft pin does not break or deform during high-torque assembly. Stainless steel raw materials feature pure metallographic structure, excellent oxidation resistance and salt spray resistance, adapting to long-term outdoor security equipment use. Each batch of raw materials is tested for tensile strength, yield strength and surface uniformity, with complete MTC material certificates for batch traceability. Impure and unqualified raw materials are strictly eliminated to ensure the structural stability and anti-disassembly performance of finished anti-theft screws.

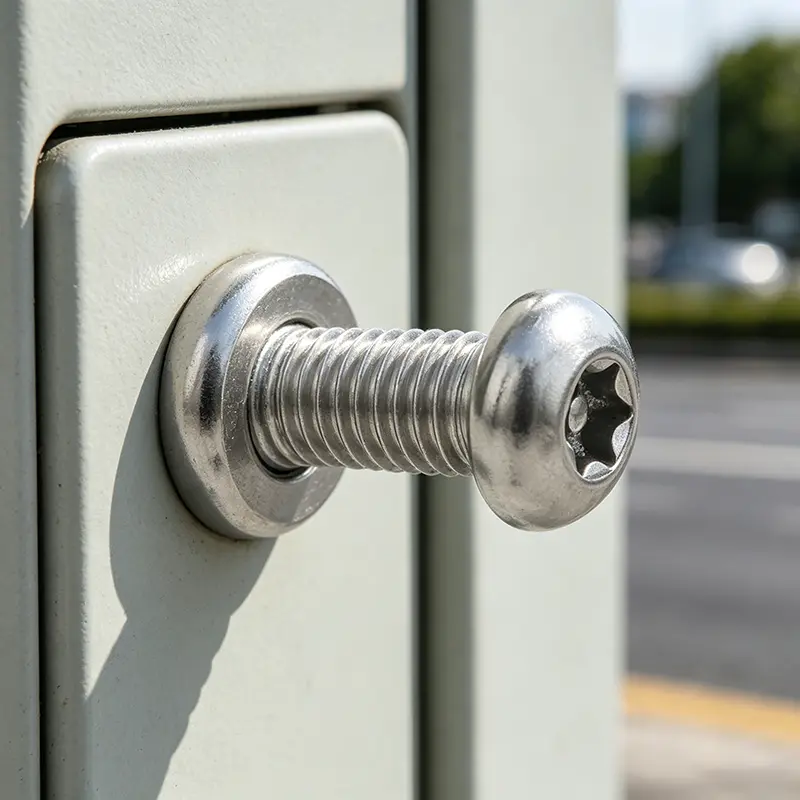

Pan Head Torx Pin Security Machine Screw

Quality Control & Production Flow

The whole production process follows standardized fastener manufacturing procedures tailored for security fasteners: raw material inspection → precision cold heading pan head forming → integrated torx groove and central pin stamping → precision thread rolling → heat treatment toughening → surface anti-rust treatment → dimensional tolerance inspection → special tool matching test → torque sampling detection → finished product packaging. The central anti-theft pin is integrally formed with high concentricity, avoiding offset and failure of anti-disassembly function. The torx groove has uniform lobe depth and smooth inner wall, ensuring stable matching with special security tools. All finished products undergo 100% manual and mechanical inspection to screen out defective products with deformed pins, damaged grooves and unqualified threads, ensuring 100% qualified anti-theft performance of batch products.

Technical Notes & Engineering Remarks

This torx pin security screw is a dedicated anti-tamper fastener, which can only be disassembled with professional hollow torx security tools, and cannot be loosened by ordinary cross, straight or standard torx screwdrivers, achieving effective anti-theft and anti-disassembly effect. The pan head design will not scratch the equipment surface, which is suitable for public equipment that requires beautiful appearance and safety protection. Stainless steel models are recommended for outdoor, humid and coastal environments to avoid rusting and affecting disassembly and fastening performance. During installation, vertical torque operation is required to prevent groove edge damage caused by skew force, ensuring long-term stable anti-tamper performance of the screw.

Order & Customization Description

All standard metric specifications of pan head torx pin security screws are in stock, supporting fast delivery for security engineering, public facility renovation and equipment supporting projects. We support personalized non-standard customization of pin height, groove size, thread specification and special lengths. Enhanced anti-corrosion, high-temperature resistant and wear-resistant customized versions are available for special working conditions. We can provide product qualification certificates, mechanical performance test reports and batch inspection reports to support project acceptance and bidding. Support OEM laser marking and exclusive export packaging, with stable supply capacity for long-term bulk orders.
