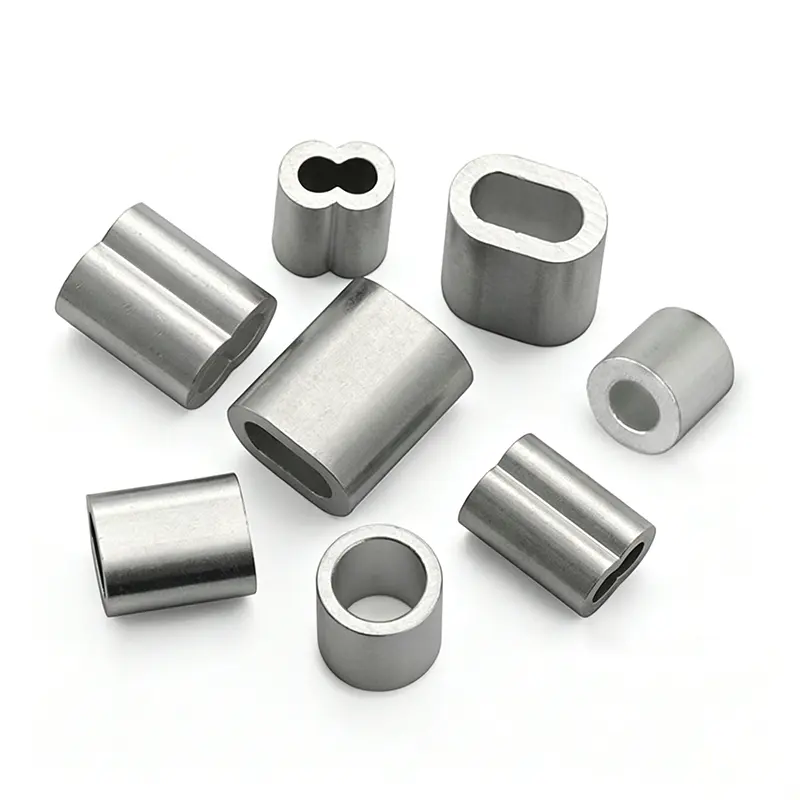

Wire Rope Aluminum Ferrule

Product Parameter

Seamless Swage Locking Structural Advantage

Different from traditional wire rope fixing accessories that rely on surface clamping friction, wire rope aluminum ferrules adopt a built-in seamless compression locking mechanism, forming an integrated composite structure with the steel wire rope after swaging. The professional oval double-hole design perfectly fits the wire rope bending radian. After hydraulic compression, the inner wall of the ferrule closely fits each steel strand, realizing overall stress sharing rather than local point clamping. This structural feature completely solves common problems such as strand crushing, local stress concentration, easy sliding and rope loosening of traditional wire rope clips. The closed seamless structure avoids dust and moisture intrusion, effectively preventing internal strand oxidation and abrasion. It maintains stable tensile strength and locking firmness under long-term tension and vibration conditions, achieving permanent non-slip fixing effect.

Aerospace Aluminum Alloy Material Adaptability

Our aluminum ferrules adopt high-purity 5052 and 6061-T6 industrial aluminum alloys, which are specially optimized for wire rope crimping and tension service scenarios. Compared with ordinary recycled aluminum sleeves on the market, the raw materials have uniform internal texture, balanced hardness and toughness, no internal pores or impurities. The material has excellent plastic deformation performance, which can produce uniform shrinkage and fitting during crimping without brittle cracking or local collapse. It retains the lightweight advantage of aluminum alloy while ensuring high tensile and shear resistance. With natural atmospheric oxidation resistance and salt spray corrosion resistance, it can adapt to harsh environments such as outdoor open-air, coastal humidity and marine rigging operation. It will not rust or corrode like metal clips, effectively extending the overall service life of wire rope assemblies.

Precision One-Piece Forming & Tolerance Control Technology

All aluminum ferrules are produced through integrated seamless extrusion forming and multi-process finishing, strictly following DIN3093 industrial standards. The inner hole precision is finely calibrated according to the wire rope diameter, ensuring zero gap matching after penetration. The inner wall is polished and deburred to eliminate sharp edges, effectively preventing scratch damage to steel wire strands during crimping and tensioning. The overall wall thickness is uniform, ensuring consistent compression deformation and uniform stress distribution during swaging. Each batch of products undergoes sampling tensile fracture test and crimping simulation test to verify locking firmness and structural stability. Strict dimensional tolerance control ensures batch consistency, avoiding loose locking or rope crushing caused by dimensional deviation.

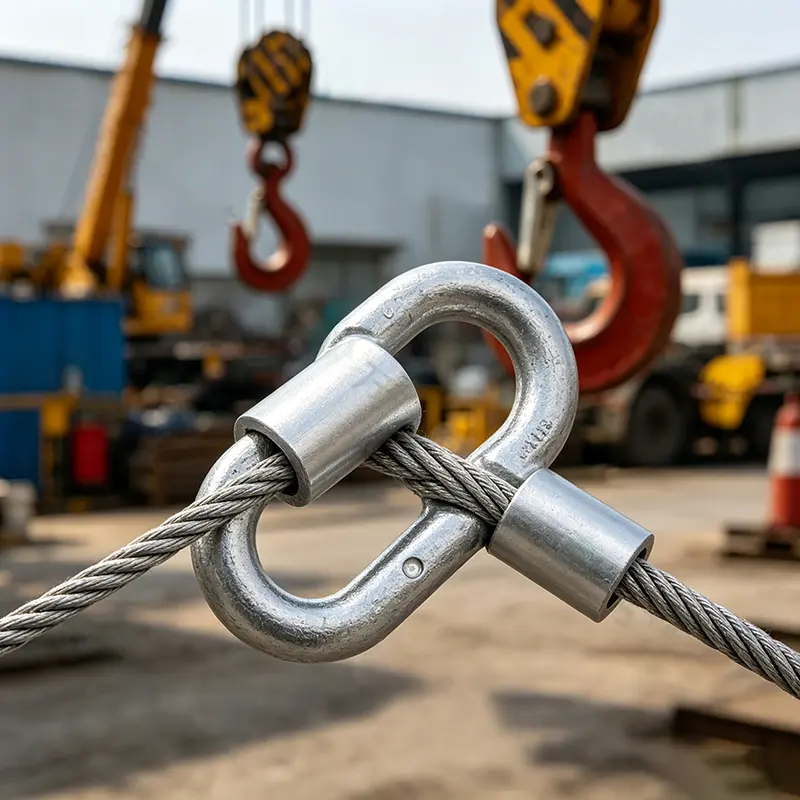

Scene-Based Crimping Process & Usage Specifications

Wire rope aluminum ferrules are professional crimping-type locking fittings with standardized matching usage logic. It is necessary to select a ferrule with a strictly matching inner diameter according to the actual wire rope diameter; oversized specification will cause locking failure, and undersized size will damage the rope structure. During assembly, keep the wire rope penetrating smoothly without twisting or strand disorder. Adopt professional hydraulic crimping tools for one-time compression forming, and double-section crimping is recommended for heavy-load tension scenarios to enhance safety redundancy. This product is suitable for permanent fixed tension assembly and long-term static load working conditions, with excellent anti-vibration and anti-loosening performance. It is not applicable for frequent disassembly and repeated adjustment scenarios. Avoid excessive tensile impact during use to ensure long-term stable locking performance of the crimped structure.

Customized Specification & Stable Batch Supply System

We provide targeted personalized customization solutions for aluminum ferrules aiming at differentiated rigging and engineering assembly demands. It supports non-standard customization of inner diameter, sleeve length and wall thickness, and can customize hard anodized reinforced surface treatment for high-corrosion and high-wear working conditions to improve surface hardness and durability. All conventional DIN standard sizes are in sufficient stock to support rapid sample delivery and large-scale centralized procurement. Complete product inspection reports and performance test data can be provided for engineering acceptance and foreign trade docking. Support OEM laser marking and export-grade moisture-proof packaging, with stable long-term batch supply capacity for rigging accessories, outdoor engineering, marine equipment and precision machinery supporting industries.
