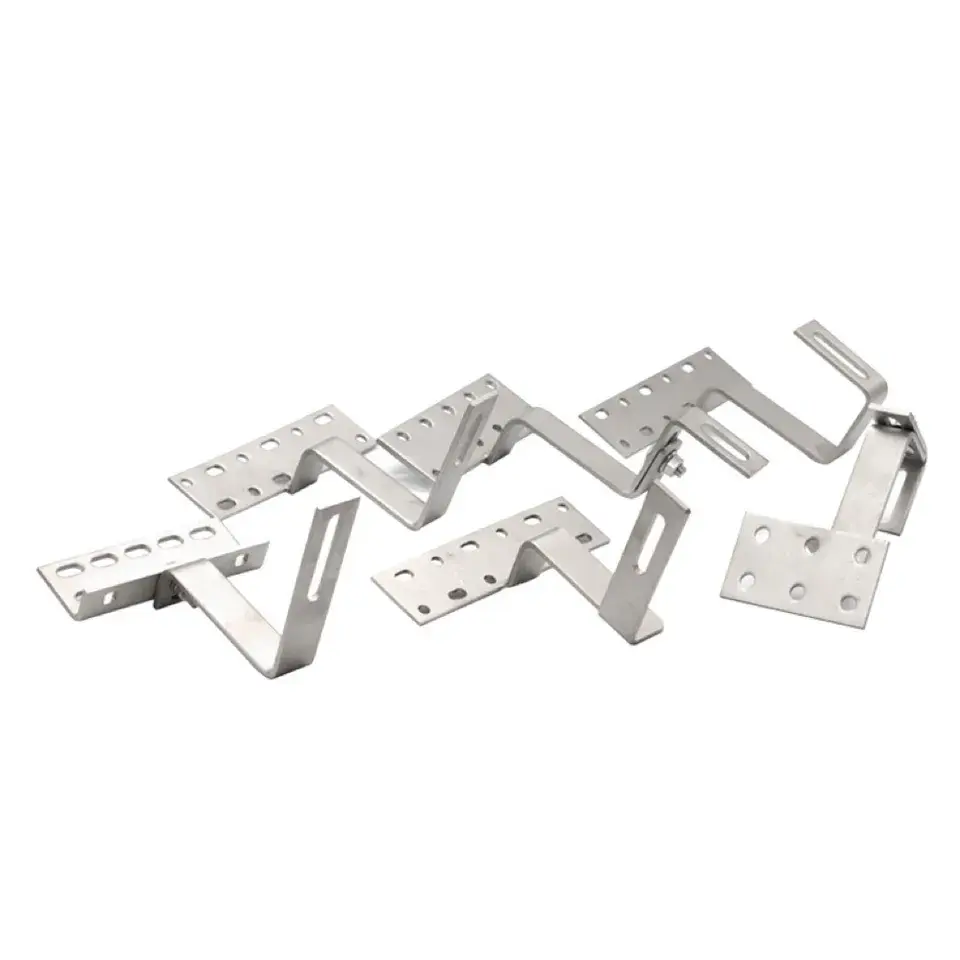

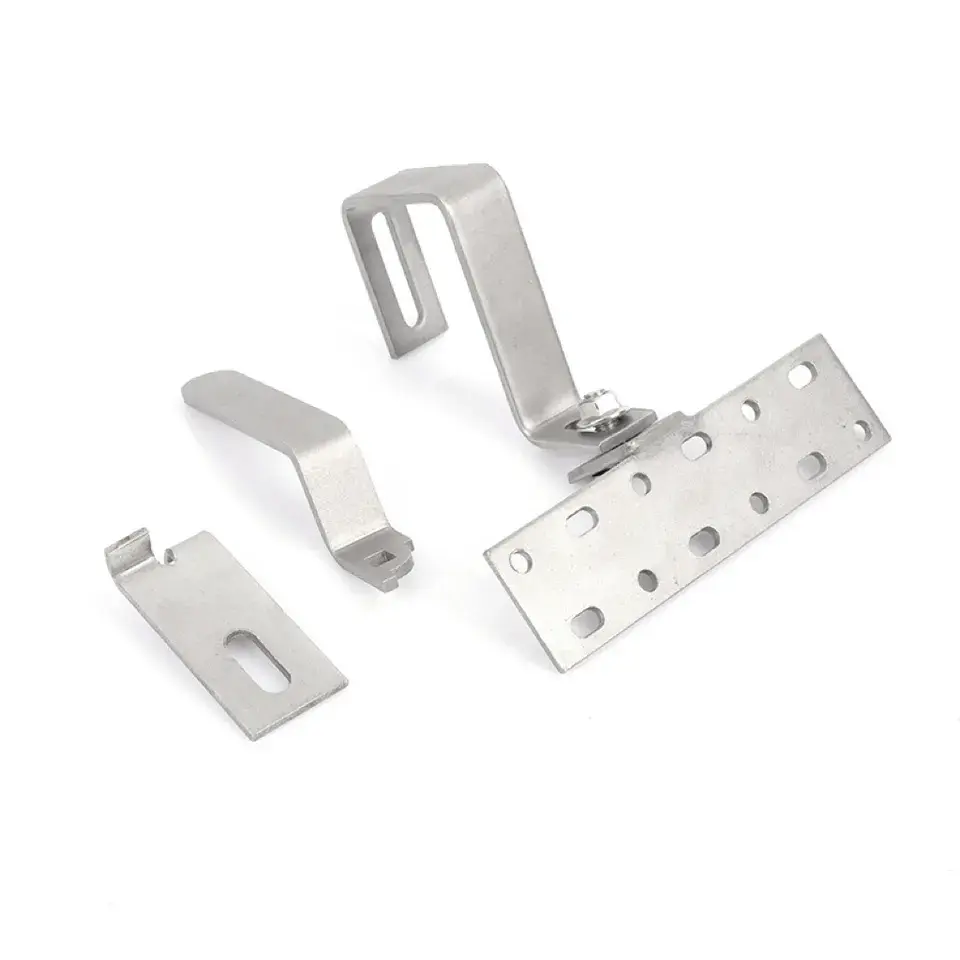

Solar Mounting Bracket Hook and Connection Fitting

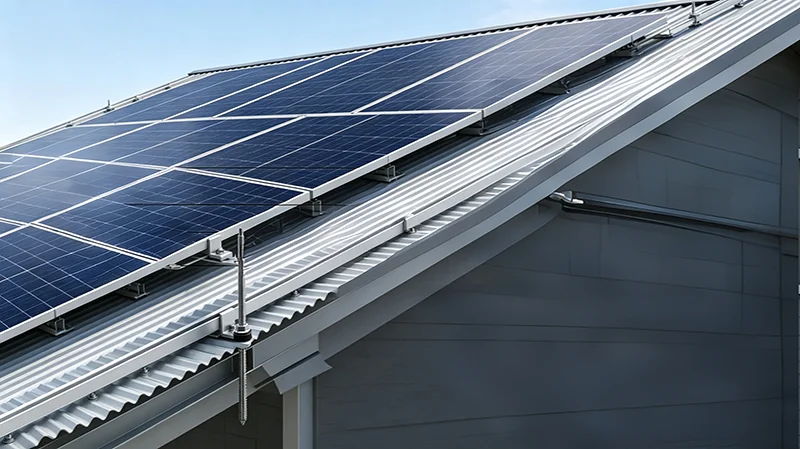

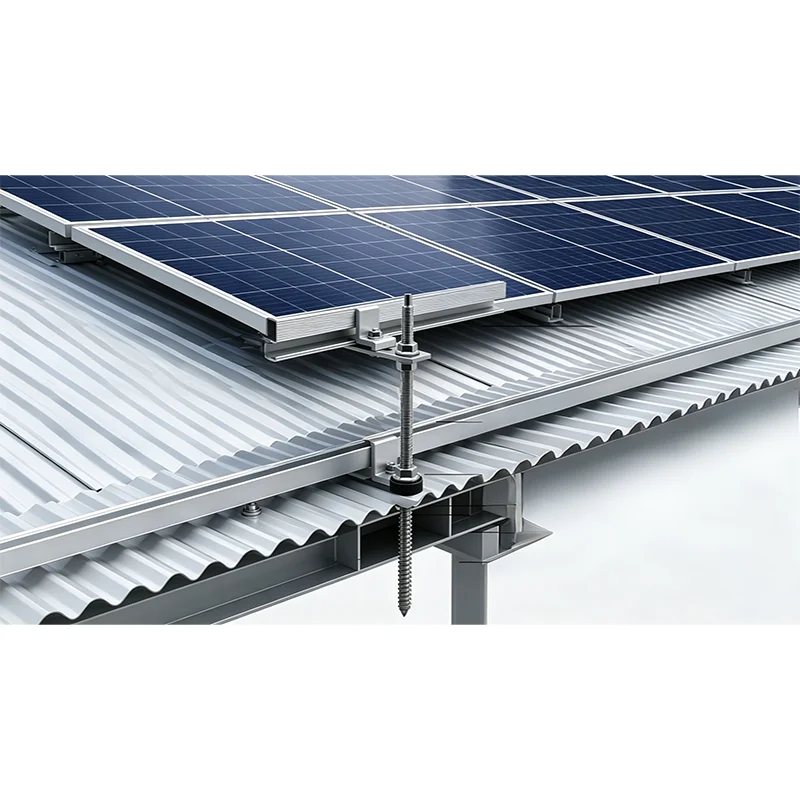

Different from conventional threaded fasteners, this Solar Mounting Bracket Hook and Connection Fitting by Wanluo supplier adopts integrated stamping and bending forming technology, featuring scientific hook-type clamping structure and multi-point stress design. It perfectly cooperates with PV hanger bolts, profile brackets and wooden/metal support structures to realize rapid positioning, hanging and locking of solar modules. With excellent structural toughness, wind resistance and installation adaptability, it solves the problems of difficult positioning, single installation angle and insufficient load-bearing of traditional photovoltaic accessories, widely used in distributed photovoltaic power stations, household solar systems and industrial PV support projects.

High-Precision Stamping Forming & Outdoor Anti-Corrosion Craft System

This Solar Mounting Bracket Hook and Connection Fitting is made of high-quality thickened galvanized steel or 304 stainless steel plate, processed through full-automatic precision stamping, integral bending and edge trimming technology. The overall structure has no welding gaps or sharp burrs, with smooth and flat surface and uniform wall thickness, ensuring balanced stress distribution during load-bearing operation. The reserved mounting holes are precisely positioned with standard aperture, realizing perfect matching with PV standard fasteners and profile accessories. The optimized hook radian design ensures tight clamping without slipping or deformation under strong wind vibration. Through professional hot-dip galvanizing, electro-galvanizing or passivation anti-rust treatment, the hanger features ultra-strong weather resistance, effectively resisting outdoor ultraviolet radiation, rain erosion and salt spray corrosion, maintaining stable mechanical performance and long service life in harsh outdoor working environments.

Product Parameter

Multi-Scenario Mounting Compatibility & PV Project Stability Advantages

1. Integrated one-piece structural stability. Adopting integral stamping and bending process without secondary splicing or welding, the overall structural rigidity is stronger than ordinary welded hangers. It avoids fracture and loose deformation caused by long-term outdoor vibration, ensuring long-term stable load-bearing of photovoltaic modules.

2. Universal multi-structure matching capability. This PV hanger is compatible with wooden brackets, aluminum alloy profiles and steel structure supports, perfectly matching PV dual-thread hanger bolts and various standard fasteners. It solves the problem of single accessory adaptability and reduces spare part types for PV projects.

3. Flexible multi-angle installation adaptation. The optimized hook clamping structure and reserved multi-position mounting holes support horizontal, vertical and inclined multi-angle installation. It can adapt to different roof slopes and support layout requirements, greatly improving the flexibility of PV project construction.

4. Superior outdoor durable protection. With heavy-duty anti-corrosion surface treatment, the hanger resists ultraviolet aging, rainwater erosion and coastal salt spray corrosion. It maintains stable clamping performance and structural toughness in long-term outdoor operation, reducing later maintenance costs of photovoltaic systems.

5. Efficient construction and cost-saving performance. The integrated positioning design simplifies on-site installation procedures, realizing rapid hanging and locking of solar panels. It improves the overall construction efficiency of PV power stations, and supports batch standardized supply, with high project cost performance.

FAQ

Q1: What is the function of a PV bracket hanger in solar systems?

A1: It is a key transition connecting accessory for photovoltaic support systems, used for hanging and fixing solar panels and connecting various support profiles. It cooperates with PV hanger bolts to form a stable overall mounting structure, ensuring firm positioning of PV modules.

Q2: Is this Solar Mounting Bracket Hook and Connection Fitting compatible with wooden PV brackets?

A2: Yes. It is perfectly matched with wooden photovoltaic supports and PV dual-thread hanger bolts. The reasonable stress design avoids wood board cracking and unstable clamping, adapting to various wood-structured PV installation scenarios.

Q3: Can it resist strong wind and bad weather?

A3: Absolutely. Made of high-strength thickened plate and equipped with anti-vibration clamping structure, it has excellent wind resistance and impact resistance. The outdoor-grade anti-corrosion treatment ensures stable operation in harsh weather environments for years.

Q4: Does it support special-shaped PV bracket customization?

A4: Yes. We support personalized customization of bending angle, plate thickness, hole spacing and load-bearing specifications, aiming at special PV support structures and non-standard project requirements to provide exclusive matching solutions.

Q5: Is the installation of the PV bracket hanger complicated?

A5: The overall structure is simple and user-friendly. With reserved standard mounting holes, it can be quickly positioned and locked with supporting fasteners. No complex tools or auxiliary processes are required, suitable for large-scale batch construction of PV projects.
