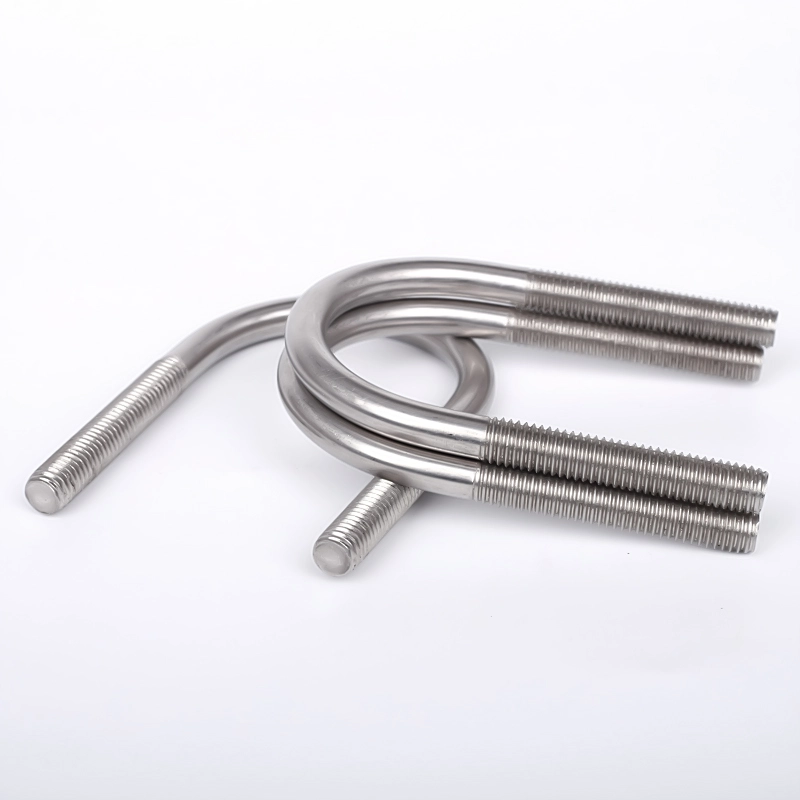

Stainless Steel U Bolt Custom Pipe Clamp U-Bolt

Under the Wanluo manufacturer, we produce high-quality Stainless Steel U Bolt Custom Pipe Clamp U-Bolt tailored for pipe fixing and equipment anchoring, complying with international standard specifications. Featuring a unique U-shaped curved integrated structure, this special fastener is professionally designed for pipeline clamping and circular object fixation, solving the instability problems of traditional fasteners for tubular fixtures.

Send Inquiry

Product Description

The Stainless Steel U Bolt Custom Pipe Clamp U-Bolt produced by Wanluo boasts excellent fitting performance and strong tensile stability, suitable for various pipeline engineering and equipment fixing projects. We support spot supply, personalized non-standard customization and bulk order service to satisfy global procurement demands.

Product Design & Fitting Features

This U-type bolt adopts one-piece bending and cold forging forming technology, with a smooth arc inner wall that perfectly fits the outer diameter of round pipes, tubes and cylindrical equipment. The symmetrical double full-thread end design enables uniform stress and balanced locking force, effectively preventing pipe shaking, displacement and loosening caused by vibration and external force extrusion. Matched with professional supporting nuts and gaskets, it realizes stable and firm clamping and fixing. Multiple high-purity stainless steel material options endow the bolt with durable corrosion resistance and structural stability, adapting to various outdoor, humid and corrosive working environments for long-term safe fixing.

Product Parameter

Parameter Item	Detailed Specification
Product Name	Stainless Steel U Bolt, Pipe Clamp U-Bolt
Executive Standard	National & Industrial Standard, Support Custom Non-standard Size
Available Material	In Stock: 304, 316, 316L; Customizable: 904L, 310S, 2205, 2507 Duplex Steel
Size Range	Customizable pipe diameter, thread length and bolt width, covering conventional pipeline specifications
Thread Type	Standard metric coarse thread, fine thread customizable for special fixing requirements
Surface Treatment	Pickling & passivation, smooth burr-free surface, optional bright finishing
Mechanical Properties	High tensile strength, strong bending resistance, not easy to deform after long-term clamping
Packaging Method	Inner plastic bag + export carton, pallet packaging for FCL, OEM packaging available
Supply Service	Spot wholesale, full-size customization, mixed shipment and one-stop procurement

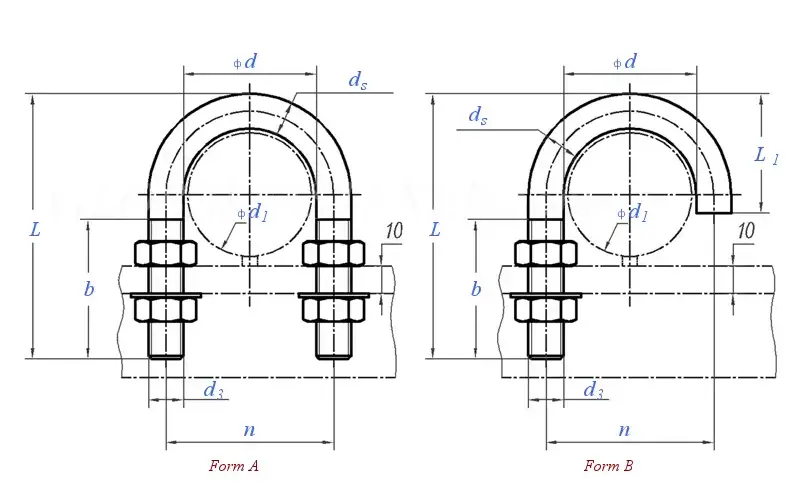

Stainless Steel U Bolt Custom Pipe Clamp U Bolt

Nominal Diameter d			30	38	46	52	64	82	94	120	148
d₁			25~26.9	30~33.7	38~42.4	44.5~48.3	57~60.3	76.1	88.9	108~114.3	133~139.7
d₁	tube size	Metric	20	25	32	40	50	65	80	100	125
d₁	tube size	Inch	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4	/
b^③			40	40	50	50	50	50	50	60	60
d_s			10	10	10	10	12	12	12	16	16
d₃			M10	M10	M10	M10	M12	M12	M12	M16	M16
L^③			70	76	86	92	109	125	138	171	191
L₁			28	31	37	40	49	57	66	/	/
n			40	48	56	62	76	94	106	136	164
per 100 units ≈ kg	Type A		9.4	10.5	12	12.9	22.2	25.9	28.8	64	72.7
per 100 units ≈ kg	Type B		6.8	7.7	9	9.7	16.8	19.8	22.4	/	/

Nominal Diameter d			176	202	228	282	332	378	428	530
d₁			159~168.3	(191)~193.7	216~219.1	267~273	318~323.9	355.6~368	406.4~419	508~521
d₁	tube size	Metric	150	(175)	200	250	300	350	400	500
d₁	tube size	Inch	/	/	/	/	/	/	/	/
b^③			60	60	70	70	70	70	70	70
d_s			16	16	20	20	20	24	24	24
d₃			M16	M16	M20	M20	M20	M24	M24	M24
L^③			217	249	283	334	385	435	487	589
L₁			/	/	/	/	/	/	/	/
n			192	218	248	302	352	402	452	554
per 100 units ≈ kg	Type A		83.4	95.8	169.8	202.8	235	382	429	522
per 100 units ≈ kg	Type B		/	/	/	/	/	/	/	/

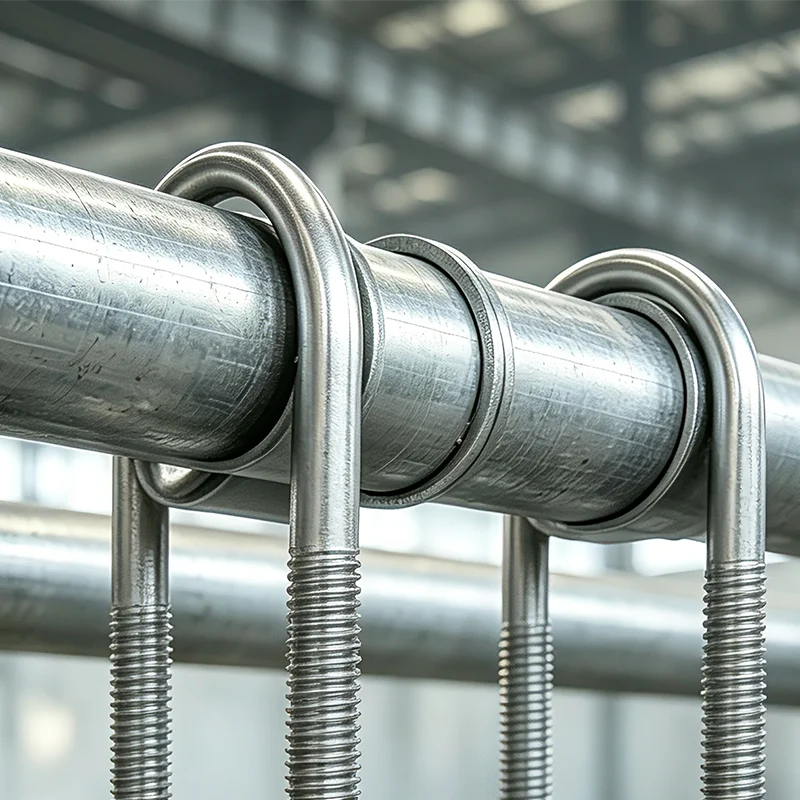

Application Scenarios & Usage Advantages

1. Professional U-shaped arc bending design fits circular pipelines and cylindrical equipment perfectly, avoiding gap deviation during installation and ensuring comprehensive and close clamping fixation.

2. Symmetrical double-thread structure achieves balanced stress distribution, effectively resisting pipeline vibration and impact force, preventing loosening and falling off in long-term use.

3. High-quality stainless steel materials deliver excellent rust-proof, anti-corrosion and weather resistance, adapting to outdoor piping, marine pipelines and chemical humid working environments.

4. No burrs and smooth surface treatment protects the outer wall of pipelines from scratch damage, ensuring the integrity and safe operation of pipeline equipment.

5. Flexible personalized customization of caliber, length and thread makes it applicable for water pipes, oil pipes, cable pipelines and mechanical cylindrical parts fixation with strong versatility.

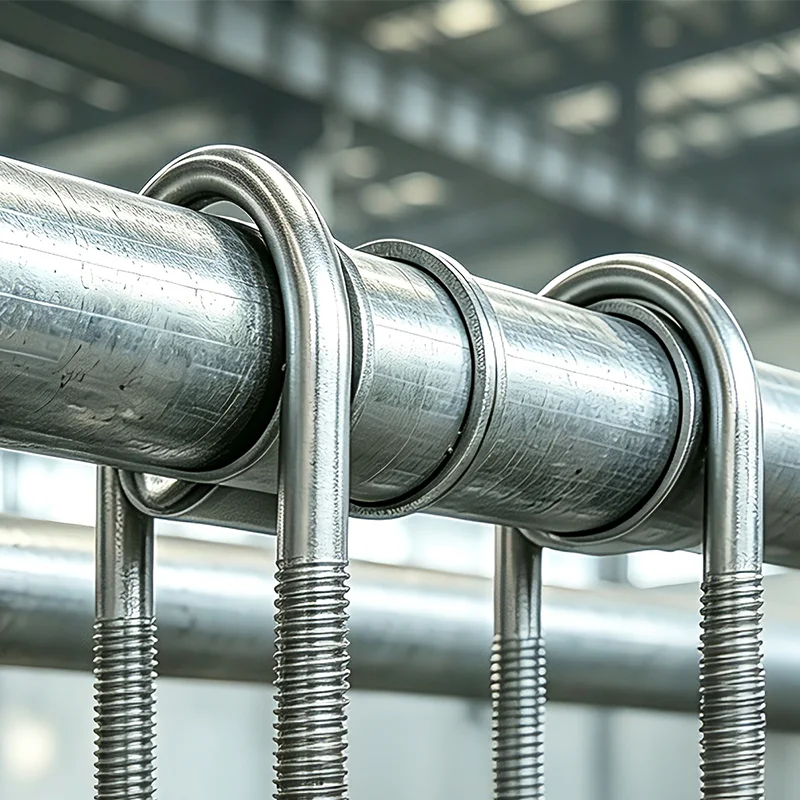

Stainless Steel U Bolt Custom Pipe Clamp U Bolt

FAQ

Q1: What scenarios are Stainless Steel U Bolt Custom Pipe Clamp U-Bolts mainly used for?

A1: U-bolts are specially used for clamping and fixing various circular pipelines, tubular equipment and cylindrical parts, widely applied in building pipeline engineering, mechanical equipment piping, vehicle pipeline fixation and outdoor facility piping reinforcement.

Q2: Can you customize non-standard special-sized U-bolts?

A2: Yes. We support full personalized customization of U-bolt inner diameter, bending width, thread length and thread pitch, which can match various special pipeline calibers and installation space requirements.

Q3: Will stainless steel U-bolts rust in outdoor and coastal environments?

A3: Conventional 304/316 Stainless Steel U Bolt Custom Pipe Clamp U-Bolt
have good anti-rust performance for daily outdoor use. For coastal salt fog and high-corrosion environments, we provide high-grade duplex steel and 904L customized options for long-term anti-corrosion effect.

Q4: Do U-bolts need supporting accessories for installation?

A4: Conventional installation requires matching nuts and flat gaskets for auxiliary locking. We can provide complete supporting accessory sets according to customer needs to realize one-stop supporting supply.

Q5: Will the U-shaped bending part deform during long-term clamping?

A5: Adopting integral cold bending and shaping process, the bolt has high structural toughness and bending resistance. It can maintain stable clamping shape and will not deform or loosen under normal working load and long-term vibration.
