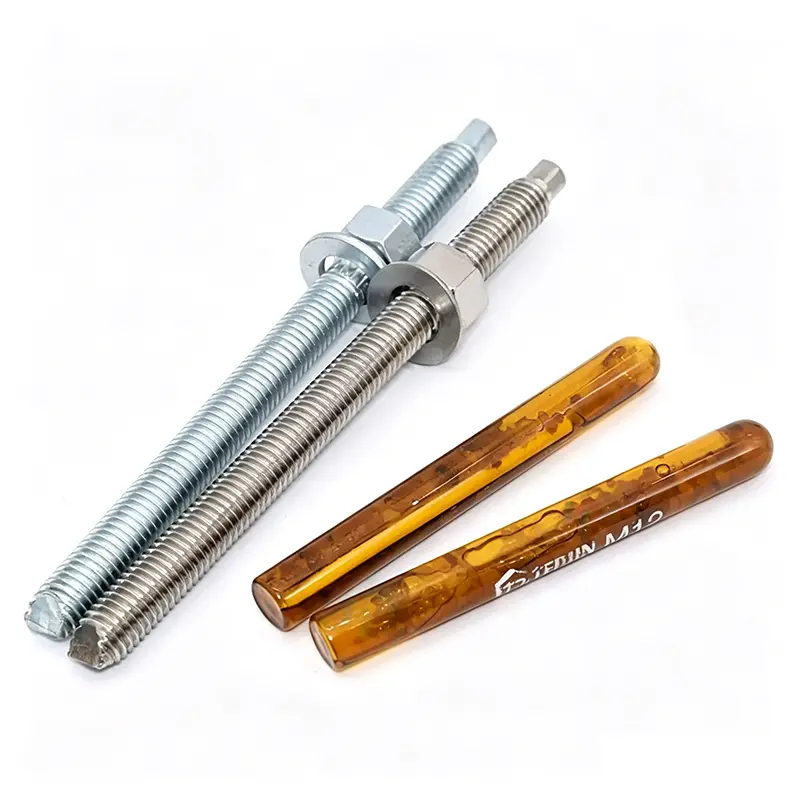

Stainless Steel Chemical Anchor Bolt

Product Parameter

Non-Expansion Chemical Bonding Anchoring Mechanism

The core advantage of stainless steel chemical anchor bolts lies in the innovative resin integral bonding anchoring technology, which completely subverts the stress limitation of traditional mechanical expansion anchors. Relying on high-purity vinyl resin and graded quartz sand filler, the chemical agent undergoes physical mixing and chemical curing reaction after construction, forming a high-strength adhesive layer between the bolt body and the concrete hole wall. It realizes seamless integration of the anchor bolt and the base material without any expansion extrusion force on the hole wall. This unique mechanism avoids base cracking, edge damage and structural loosening caused by mechanical expansion, and allows smaller installation spacing and edge distance, greatly improving the utilization rate of building base space. The cured resin layer has excellent toughness and bonding strength, which can evenly disperse tensile and shear loads, effectively resist structural vibration and alternating load impact, and maintain permanent and stable anchoring performance for building structures.

Stainless Steel Corrosion Resistance & Structural Stability

Different from ordinary carbon steel chemical anchor bolts that are prone to rust and attenuation, our 304 and 316 stainless steel anchor bolts are customized for harsh outdoor and corrosive engineering environments. The raw materials have uniform metallographic structure and balanced mechanical properties, maintaining stable tensile strength and structural rigidity under long-term outdoor exposure, coastal salt spray, acid and alkali humid conditions. The overall passivation treatment further enhances surface oxidation resistance, avoiding rust expansion, thread jamming and performance degradation caused by environmental corrosion. The matched resin agent has excellent aging resistance and UV resistance, no brittleness or peeling after long-term service. The combination of stainless steel mechanical stability and resin chemical stability ensures that the anchoring system has ultra-long service life and zero failure rate in structural reinforcement projects.

Engineering-Grade Precision Manufacturing & Formula Calibration

All stainless steel chemical anchor bolts adopt engineering-standard integrated precision processing technology, focusing on thread precision and overall structural matching. The threaded part is rolled at high precision with complete tooth shape and uniform pitch, ensuring smooth locking and uniform force bearing of matched accessories. The bolt body has straight forming, no bending deformation, and stable vertical stress performance. The supporting chemical agent adopts environmentally friendly styrene-free formula with low volatility and fast curing speed, adapting to normal temperature and low-temperature construction environments. The quartz sand filler is graded and screened to ensure compact filling after curing and improve overall compression and shear resistance. Each batch of products undergoes random tensile destructive testing and curing performance verification to ensure that the anchoring load fully meets engineering design standards, with stable and reliable batch quality.

Standardized Construction & Engineering Adaptation Guidelines

Chemical anchor bolts are professional structural anchoring fasteners, with strict standardized construction processes applicable to permanent building reinforcement scenarios. Before installation, strictly clean the dust and residue inside the drilling hole to ensure sufficient bonding between the resin agent and the base material. Inject the chemical agent quantitatively and insert the anchor bolt at a uniform speed to avoid bubble gaps affecting the bonding effect. Complete positioning and fixing before the resin is initially cured, and avoid shaking, displacement and load-bearing operation during the curing period. This product is suitable for solid concrete, stone and dense masonry bases, not applicable to hollow bases and loose wall materials. It is the preferred fastener for high-load, anti-vibration and long-life engineering anchoring, effectively solving the hidden dangers of loose load-bearing and short service life of traditional expansion bolts in structural projects.

Engineering Customization & Large-Scale Batch Supply

We provide full-scene customized solutions for stainless steel chemical anchor bolts targeting differentiated engineering construction demands. It supports non-standard customization of bolt length, special thread specifications and super-long anchoring depth, and can match enhanced resin formulas for low-temperature, high-humidity and strong corrosion environments to meet the construction requirements of special projects. All standard specifications are in sufficient stock to support rapid supply of construction samples and centralized procurement of large-scale municipal and construction projects. Complete engineering inspection reports, tensile test data and quality certification documents can be provided for project review and acceptance. Support OEM personalized marking and engineering-grade sealed packaging, with stable long-term batch delivery capacity for construction engineering, municipal transformation and industrial equipment anchoring projects.
