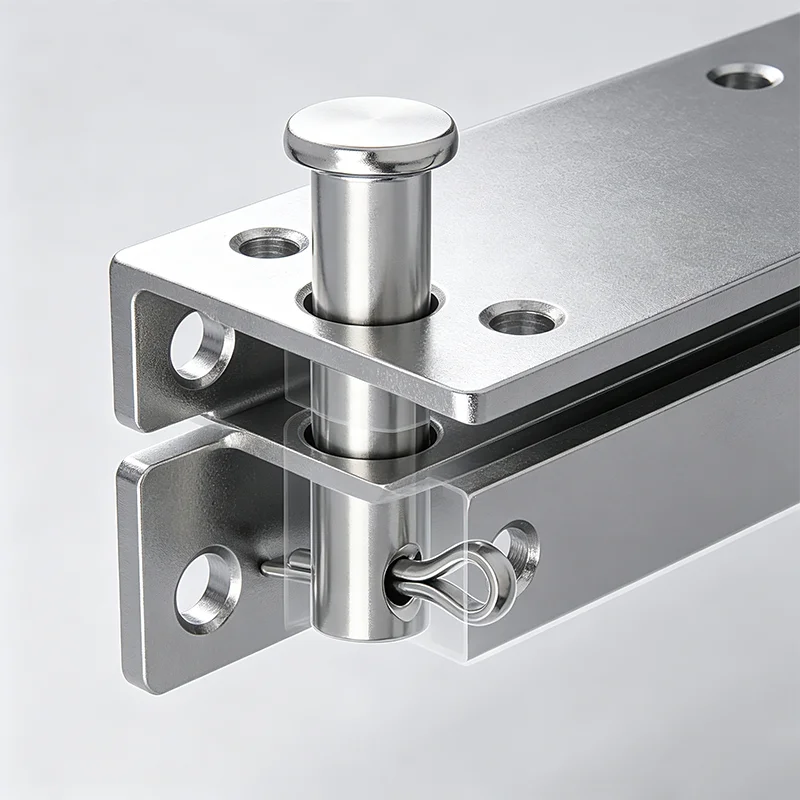

Clevis Pin for Mechanical Connection

This Clevis Pin for Mechanical Connection, directly sold by Wanluo Factory, is an industrial standard cylindrical movable connection component. It is mainly used for dynamic assembly scenarios involving mechanical hinges, rotary joints, and flexible moving structures of connecting rods. Unlike the fixed pins on the market that are only used for static precise positioning, this product is designed with dynamic movable connection as its core purpose, specifically adapted to various mechanical joints that require reciprocating rotation, angular swinging, and flexible opening and closing.

Send Inquiry

Product Description

When Wanluo Factory is manufacturing Clevis Pins for mechanical connections, it adopts an integrated structure of flat head and through-hole at the tail end. Combined with a split pin, it can achieve double locking. The assembly is simple, the rotation is smooth, and it can prevent loosening and displacement during the continuous movement of the equipment. It is widely applicable to the standardized assembly of mechanical transmission structures, vehicle chassis components, hydraulic equipment, and various movable components.

Differential selling points

1. Focuses on dynamic activity connection, suitable for dynamic working conditions rather than static positioning.

2. Flat head limit and tail hole locking, providing dual anti-slip protection for greater safety.

3. Compatible with fork structure, offering stronger adaptability and higher assembly tolerance.

4. Simple structure and durable, with lower long-term wear and tear.

5. Extremely versatile, suitable for standardized replacement of various industrial equipment.

Structural Features & Manufacturing Technology

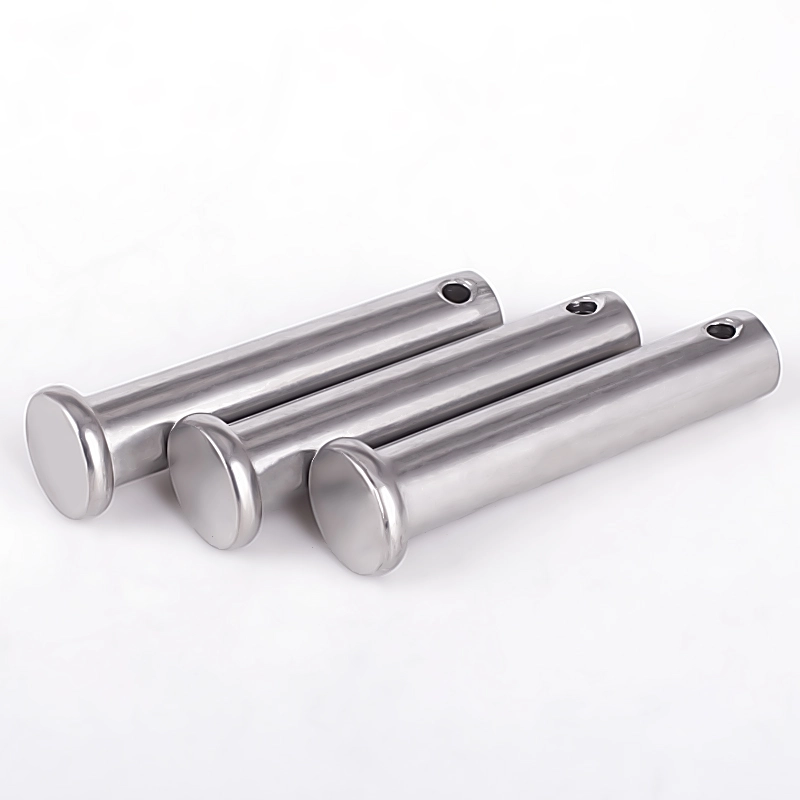

Clevis Pin for Mechanical Connection one-piece precision cold heading and centerless grinding forming process, consisting of a flat round limit head, smooth solid cylindrical pin body and reserved tail pin hole. The thickened flat head provides stable surface limiting, avoiding the pin body sinking into the mounting hole and ensuring consistent assembly flatness. The integral solid pin body has high structural rigidity and smooth surface finish, reducing friction resistance during component rotation and ensuring flexible and unobstructed mechanical movement. The precisely positioned tail hole has uniform aperture and smooth inner wall, perfectly matching standard split pins to form a complete safety locking system. Manufactured from high-quality carbon steel, alloy steel and stainless steel materials, all products undergo fine finishing, deburring and standardized anti-corrosion treatment. Strict dimensional tolerance control ensures zero-jitter fit with standard hinge holes, with stable shear resistance and long-term motion fatigue resistance, adapting to frequent movable assembly work conditions.

Product Parameter

Parameter Item	Detailed Specification
Product Name	Clevis Pin, Flat Head Clevis Pin, Hole-Type Hinge Pin, Movable Connection Cylindrical Pin
Executive Standard	DIN11023, ISO Standard, GB Standard, ANSI Standard, Custom Non-standard Sizes
Available Material	45# Carbon Steel, 40Cr Alloy Steel, 304/316 Stainless Steel
Size Range	Diameter 2mm-30mm, Length 6mm-350mm full standard sizes, customized pin hole position & length
Structure Type	Flat limit head, solid cylindrical body, tail pin hole safety locking structure
Processing Technology	Precision cold heading, centerless grinding, hole precision drilling, surface hardening & finishing
Applicable Workpiece	Mechanical hinges, clevis brackets, connecting rods, vehicle chassis, hydraulic movable joints, engineering machinery parts
Surface Treatment	Galvanization (white/color/black), black oxide hardening, passivation, stainless steel polishing
Mechanical Properties	High shear resistance, smooth rotation, limit anti-sinking, safe anti-drop, fatigue resistance for frequent movement
Packaging Method	Anti-rust inner box + export carton, moisture-proof and shockproof packaging, pallet packing for bulk orders
Supply Service	Spot standard supply, non-standard customization, one-stop supporting supply with split pins

Clevis Pin For Mechanical Connection

Nominal Diameter d		Φ3	Φ4	Φ5	Φ6	Φ8	Φ10	Φ12	Φ14	Φ16	Φ18	Φ20	Φ22	Φ24
d	max=nominal size (h11)	3	4	5	6	8	10	12	14	16	18	20	22	24
d	min	2.94	3.925	4.925	5.925	7.91	9.91	11.89	13.89	15.89	17.89	19.87	21.87	23.87
d_k	max=nominal size (h14)	5	6	8	10	14	18	20	22	25	28	30	33	36
d_k	min	4.7	5.7	7.64	9.64	13.57	17.57	19.48	21.48	24.48	27.48	29.48	32.38	35.38
d₁	min=nominal size (H13)	0.8	1	1.2	1.6	2	3.2	3.2	4	4	5	5	5	6.3
d₁	max	0.94	1.14	1.34	1.74	2.14	3.38	3.38	4.18	4.18	5.18	5.18	5.18	6.52
c	max	1	1	2	2	2	2	3	3	3	3	4	4	4
e	≈	0.5	0.5	1	1	1	1	1.6	1.6	1.6	1.6	2	2	2
k	Nominal Size (js14)	1	1	1.6	2	3	4	4	4	4.5	5	5	5.5	6
	max	1.125	1.125	1.725	2.125	3.125	4.15	4.15	4.15	4.65	5.15	5.15	5.65	6.15
	min	0.875	0.875	1.475	1.875	2.875	3.85	3.85	3.85	4.35	4.85	4.85	5.35	5.85
L_e	min	1.6	2.2	2.9	3.2	3.5	4.5	5.5	6	6	7	8	8	9
r		0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	1	1	1	1

Core Advantages & Industrial Applications

1. Professional flat head limiting structure effectively prevents the pin body from sinking and shifting during high-speed rotation and reciprocating movement, maintaining stable assembly position of movable parts and avoiding mechanical jitter and connection deviation.

2. Tail hole locking matching design, perfectly compatible with standard split pins. The combination of clevis pin and split pin forms dual safety protection, completely solving the risk of pin body falling off caused by long-term mechanical vibration and impact load.

3. Ultra-smooth cylindrical pin body minimizes assembly friction, ensuring flexible and stable rotation of hinge joints and movable connecting parts. It has excellent motion fatigue resistance, not easy to jam or wear after long-term frequent operation.

4. High structural strength and strong shear resistance. The solid integral forming process enables the pin body to bear large lateral load and tension, adapting to heavy-duty movable connection scenarios of engineering machinery and vehicle equipment.

5. Clevis Pin for Mechanical Connection has wide application range with diversified material options, widely used in automobile chassis systems, agricultural machinery, hydraulic equipment, railway facilities, automation equipment and various mechanical hinge movable connection fields.
