Stainless Steel Flange Nut DIN 6923

The Stainless Steel Flange Nut DIN 6923 supplied by Wanluo manufacturer can effectively solve the common problems that often occur in traditional assembly methods, such as uneven force distribution, misalignment of gaskets, complicated component matching, and low installation efficiency. With its integrated characteristic of self-bearing pressure positioning, it can provide a more uniform and stable locking effect for scenarios such as equipment fixation, outdoor steel structure connection, and pipeline component assembly, and is suitable for various conventional and outdoor durable assembly conditions.

Core selling points

1. Integrated structure eliminates the need for gasket assembly steps. Traditional nut assembly requires additional flat washers to distribute the pressure. This flange nut comes with a widened flange pressure-bearing surface, which is integrated and does not require gaskets. This significantly reduces the number of components and simplifies the on-site assembly process, effectively improving the efficiency of batch installation and equipment maintenance.

2. Uniform force without deviation, protecting the assembly contact surface. The large flat surface of the flange can disperse the locking pressure, avoiding problems such as sheet damage, deformation, and screw loosening caused by concentrated force at a single point. The assembly force is more balanced, eliminating the failure of fixation caused by gasket displacement or deviation.

3. Standard German standard process, with extremely strong adaptability

Our Stainless Steel Flange Nut DIN 6923 is produced in accordance with the tolerance standards of DIN 6923. It has high thread accuracy and smooth engagement, and is compatible with standard bolts of the same specification available on the market. It is suitable for industrial assembly scenarios such as mechanical manufacturing, equipment modification, outdoor steel structures, and pipeline fixation.

Pressure Dispersion & Installation Advantages

Different from standard hex nuts, the extended integrated flange surface of the flange nut greatly increases the contact area with the workpiece. It can evenly disperse locking pressure, effectively avoiding surface indentation, deformation and cracking of thin plates, soft materials and painted workpieces. The anti-skid tooth design on the bottom of the flange enhances friction resistance, providing excellent anti-loosening effect under vibration and alternating load. Adopting one-piece stamping and precision tapping process, the overall structure is solid without loose layers. Made of high-quality stainless steel, it features outstanding rust resistance and environmental adaptability for long-term outdoor and industrial use.

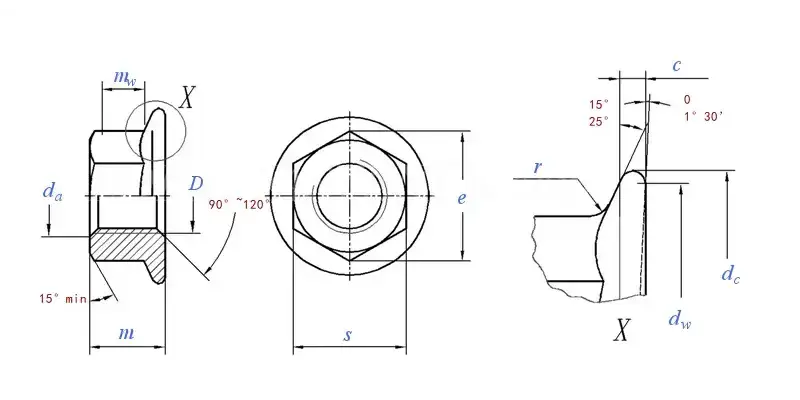

Product Parameter

Industrial Application & Core Strengths

1. Integrated one-piece structure eliminates the need for separate washers, reducing installation accessories and simplifying on-site assembly procedures, greatly improving overall construction efficiency.

2. Large-area flange bearing surface disperses locking pressure evenly, protecting thin metal plates, plastic and painted surfaces from extrusion damage, which cannot be replaced by ordinary hex nuts.

3. Serrated flange surface option provides strong friction resistance, effectively preventing nut rotation and loosening in vibrating mechanical operation, delivering more stable locking than standard nuts.

4. High-grade stainless steel material resists rust, oxidation and chemical corrosion, adapting to outdoor facilities, marine equipment, mechanical frames and humid industrial working conditions.

5. Standard thread tolerance ensures perfect compatibility with all metric bolts and threaded rods, widely used in machinery manufacturing, automotive equipment, pipeline engineering and architectural fastening projects.

FAQ

Q1: What is the main advantage of Stainless Steel Flange Nut DIN 6923?

A1: Flange nuts adopt an integrated nut and washer structure, requiring no additional gaskets during installation. They feature larger force-bearing area and anti-slip performance, protecting workpiece surfaces and providing more stable anti-loosening effect than traditional hex nuts.

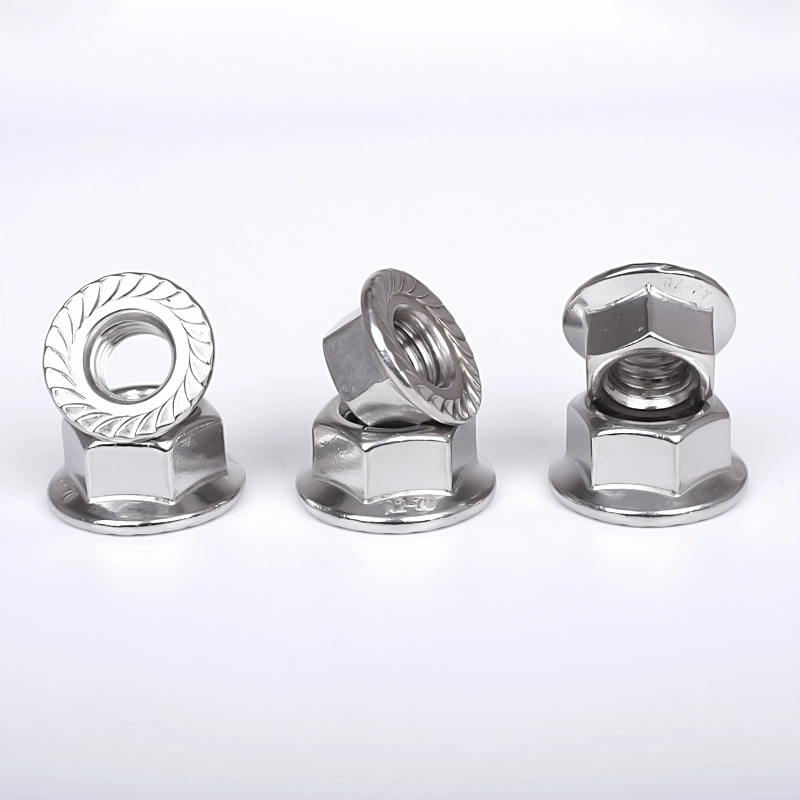

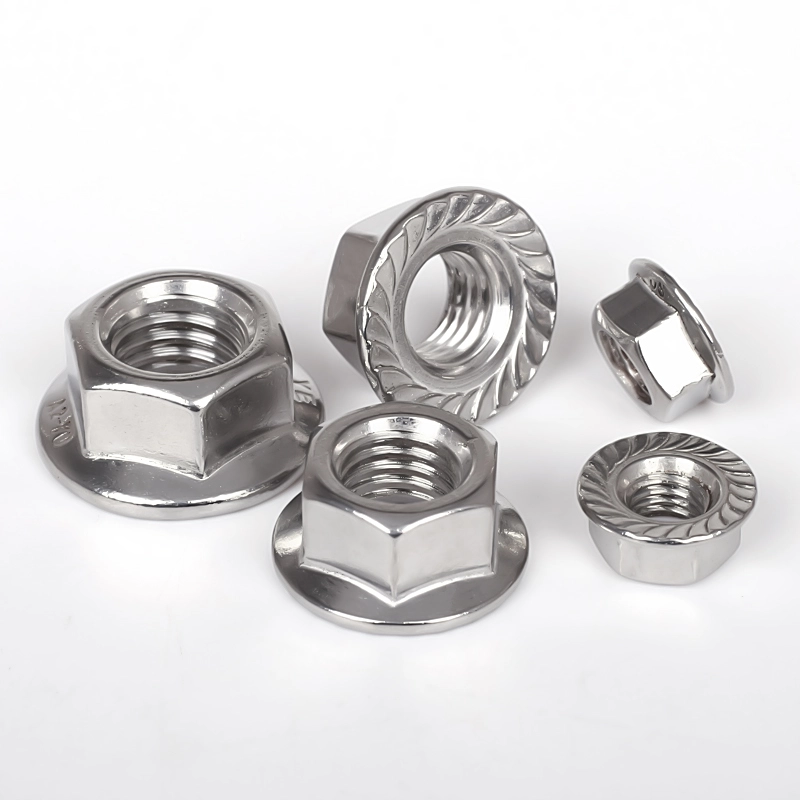

Q2: What is the difference between serrated and smooth flange nuts?

A2: Serrated flange nuts have anti-slip teeth at the bottom for stronger friction and anti-vibration locking, suitable for dynamic and vibrating equipment. Smooth flange nuts are used for finished, painted or scratch-sensitive surfaces to avoid workpiece damage.

Q3: Can flange nuts replace ordinary nuts and washers completely?

A3: Yes. The integrated flange design integrates the functions of nut and flat washer, which can fully replace the combined assembly of standard nut and gasket, saving cost and installation time.

Q4: Do you support custom large-diameter flange nuts?

A4: Absolutely. We support customized flange diameter, nut height and special thread specifications, including oversized, thickened and fine-tooth flange nuts for special equipment matching.

Q5: Are stainless steel flange nuts suitable for coastal environments?

A5: Yes. 304/316 stainless steel materials have excellent salt spray and corrosion resistance. For harsh coastal and marine environments, we provide duplex steel customization to extend service life.
